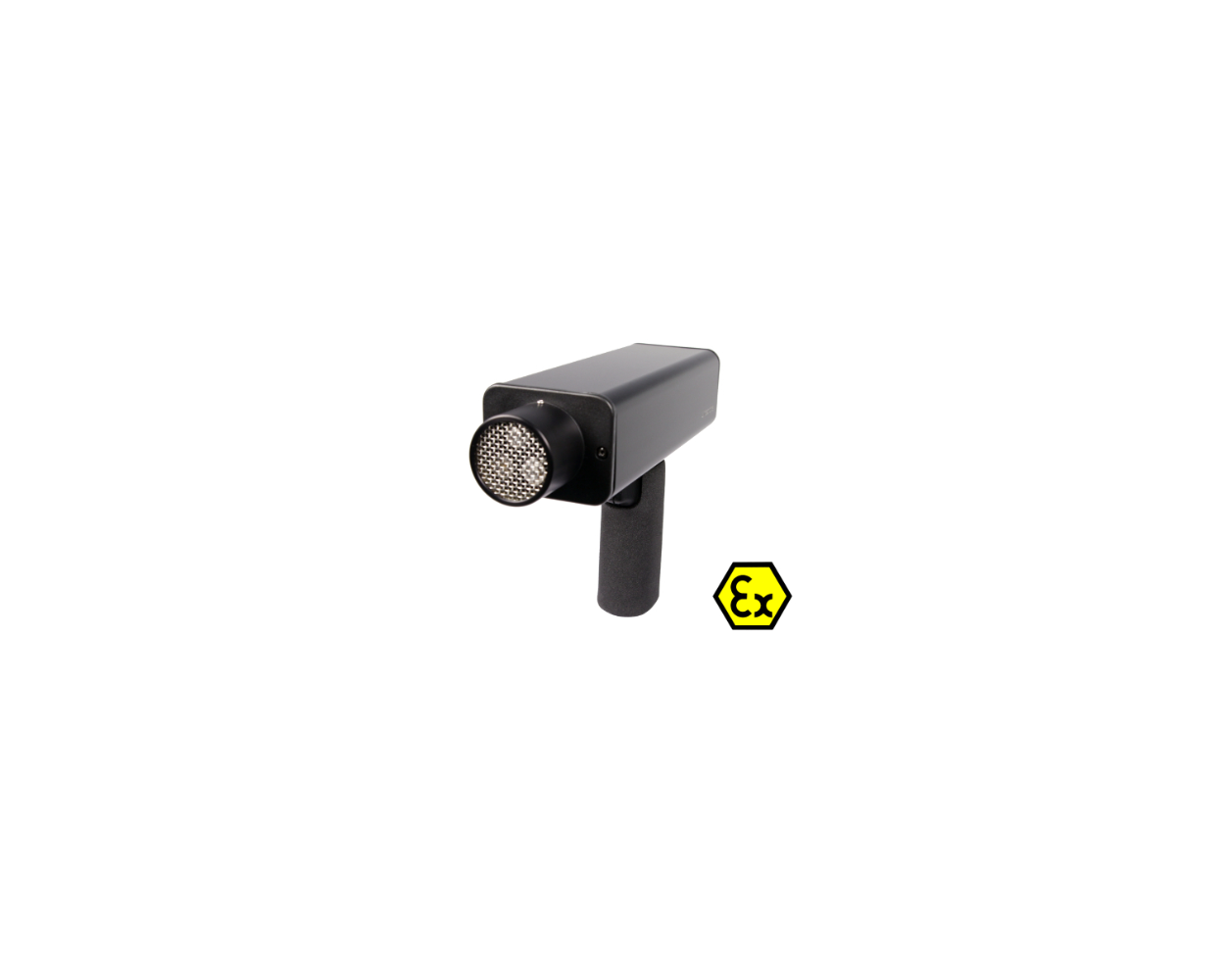

Ultraprobe 9000 ATEX
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
De Ultraprobe 9000ATEX is een digitale ultrasound inspectie, informatie, opslag en beheer systeem dat veelzijdig en eenvoudig in gebruik.
Deze Ultraprobe zal u ondersteunen om efficient een inspectie ronde te lopen door zijn gebruiksgemak. (de meeste gebruikers gaan al na 15 minuten ermee aan de slag).
Of u die nu voor trouble-shooting of een geplande route inzet, data is simpel te overzien in het display en opgeslagen met de druk op een knop. Het makkelijk af te lezen display geeft infomatie over de gecalibreerde decibel waardes en een 16-segment bar graph voor gevoeligheidbereik welke direct de intensiteitsveranderingen weergeeft en simultaan de peak-hold waarden weergeeft wanneer u aan het testen bent.
Why the Ultraprobe 9000?
- Easy in use
- Frequency settings possible from 20 to 100 kHz
- Consistent & accurate digital data storage
- Ideal for trouble shooting & route based data collection programs
- Comes with license-free Data Management Software (DMS) included to manage & report data efficiently
- For use in ATEX or EX zones without a work permit application
FM & CSA Approved Intrinsically Safe
- Class I, Division 1, Groups C & D
- ATEX group IIB
- CE approved
- For the following gases: methane-propane-ethylene
Specification
Construction
Hand-held pistol type made with coated aluminium and ABS plastic
Circuitry
Solid State SMD Digital Circuitry with temperature compensation
Frequency
20 kHz to 100 kHz (tunable in 1 kHz increments)
Response Time
<10 ms
Display
16 x 2 LCD with LED Backlight
Memory
400 storage locations
Battery
NiMH Rechargable
Operating Temperature
32 °F to 122 °F (0 °C to 50 °C)
Outputs
Calibrated heterodyned output, decibel (dB) frequency, USB data output
Probes
Trisonic Scanning Module and Stethoscope Module
Headset
Deluxe noise attenuating headphones for hard hat use
Indicators
dB, Frequency, Battery Status and 16 Segment Bar Graph
Sensitivity
Detects 0.005” (0.127 mm) diameter leak @ 5 psi (0.34 bar) at a distance of 50 ft. (15.24 m)
Threshold
1 x 10–2 std. cc/sec to 1 x 10–3 std. cc/sec
Dimensions
Complete kit in Zero Halliburton aluminum carrying case
18.5” x 14.5” x 6.5” (47 x 37 x 17 cm)
Pistol Unit: 2 lbs. (0.9 kg)
Complete carrying case: 14 lbs. (6.4 kg)
Weight
(2 lbs.) 1 kg
Warranty
1-year parts/labor standard, 5 years with completed warranty registration card.
Display Modes
Real Time, Snap Shot, Peak Hold and Storage Display
