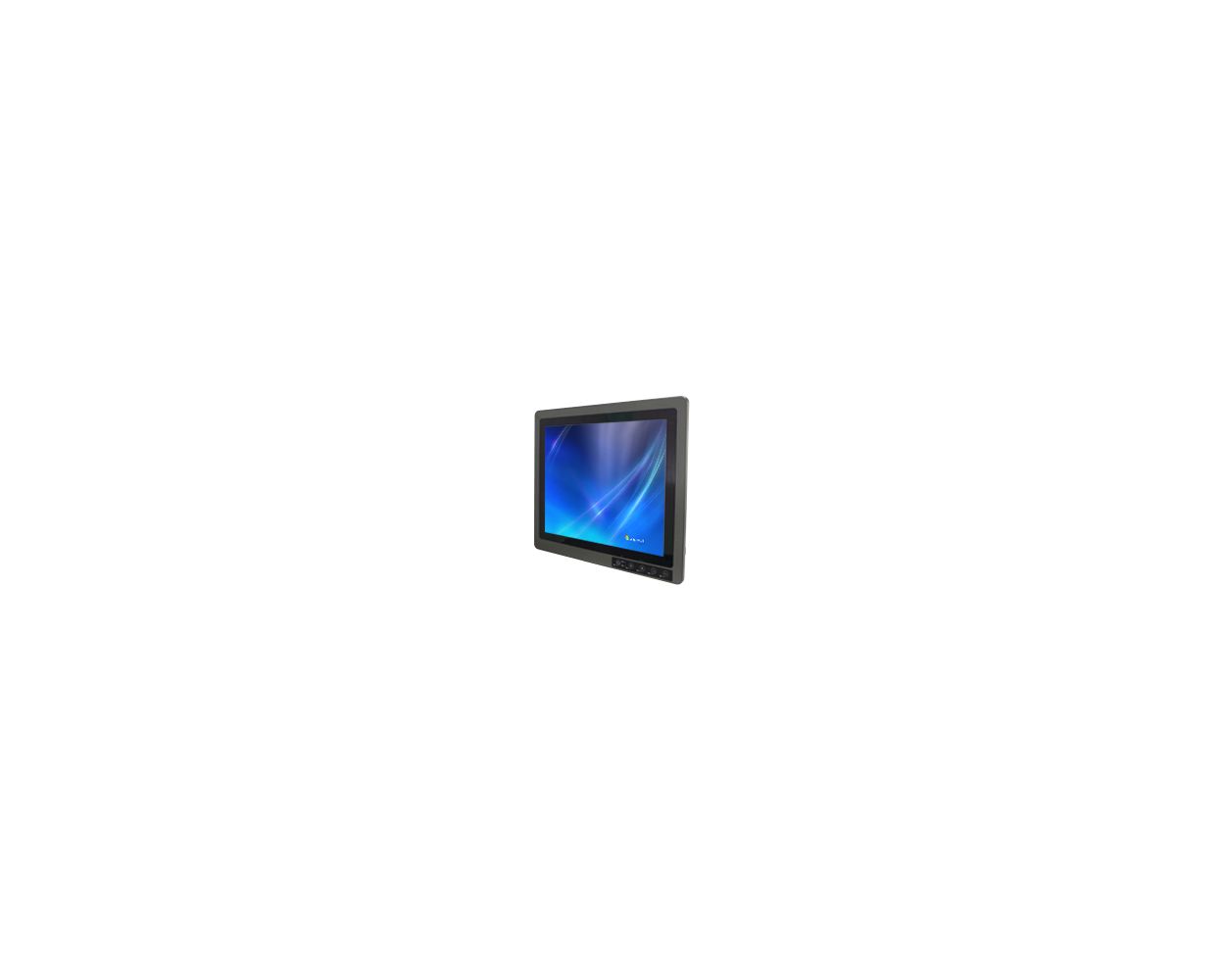

R19IHAT-66EX

Call for Price
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
SKU
876585678555

Features:

Class 1, Division 2 & ATEX Zone 2 certified for hazardous area applications Note: Available now
High performance / low power Intel Haswell Core i7-4650U
19-inch 600 nits LCD panel / Optional 1000 nits sunlight readable panel
Fanless, streamlined enclosure for highly efficient heat dissipation
Touch screen control button to enable/disable touch screen interface
Front control membrane keys Lockable by software
Intelligent Heater for working in extreme cold environments -40°C
Optional WLAN
Optional Optical Bonding

ATEX Mobile Sample Ruggedshop



LCD Panel Specification
Panel_Size 19"
Active Display Area 376.32(H) x 301.06(V)
Pixel Pitch 0.294(H) x 0.294(V)
Panel_Display Resolution
1280 x 1024
Panel_Contrast Ratio 1000:1
Display Color 16.7M
Panel_Brightness 600(typ.)
Panel_Viewing Angle -85~85(H);-80~80(V)
Recommend Resolution
1280 x 1024
Touch_SensorType Projected Capacitive
Resolution
1280 x 1024
System Specification
Processor Intel Core i7-4650U max. 3.3GHz
Chipset Intel® HD graphics 5000
Memory 1 x DDR3L SO-DIMM 1600 MHz , default 4GB
BIOS AMI BIOS
Storage mSATA SSD (default 128GB, max. 256GB)
OS Windows Embedded Standard 7(optional)
Windows 7 PRO for Embedded System (optional)
Windows Embedded 8 Standard (optional)
Windows Embedded 8.1 Industrial(optional)
Windows 10 IoT Enterprise
Net Weight (kg) (without touch) 13.5 Kg
Gross Weight(kg)(single pcking) 13 Kg
I/O Connectors
Back Panel I/O Port
  • 2 x Ex-Type Brass Cable Gland M16 (Cable range 7.5~10.2mm)
  • 3 x Ex-Type Brass Cable Gland M12 (Cable range 5.4~8mm)
Internal I/O pin-header
  • 1 x USB 2.0 terminal block
  • 1 x LAN terminal block
  • 1 x RS232/422/485 terminal block
  • 1 x 9~36V DC input terminal block
  • 1 x USB 3.0
  • 2 x USB 2.0 (female type)
  • 1 x RJ45 LAN
  • 1 x RS232/422/485 (DB9)
  • 1 x VGA (DB15)
Mechanical and Environment
Operating Temperature -40˚C to +70˚C (with intelligent heater)
Operating Humidity 5 to 95% (non-condensing)
Certifications
  • Ordinary Location Safety:
    UL 60950-1
    CSA C22.2 No. 60950-1-07
    EN 60950-1
  • Hazardous Location Safety:
    Class I, Div.2, Groups A,B,C,D T4
    Meet Standards:
    ANSI/ISA-12.12.01-2013
    CSA Std. C22.2 No. 213-M1987
  • ATEX II 3G Ex nA ic IIC T4 Gc Note: Available now
    Meet Standards:
    EN 60079-0, EN 60079-11, EN 60079-15
  • IECEx Ex nA ic llC T4 Gc Note: Available now
    Meet Standards:
    IEC 60079-0, IEC 60079-11, IEC 60079-15
  • CE, FCC
  • Shock: MIL-STD-810G Method 516.6
  • Drop: MIL-STD-810G Method 516.6
  • Vibration: MIL-STD-810G Method 514.6
Cooling System Fanless design
Dimension (W x H x D) 474 x 410 x 111 mm
IP Proof
  • IP66 Meet Standard IEC60529 (for Non-Hazardous location)
  • IP54 Meet Standard IEC60079 (for Hazardous location)
Power
Power Input 9~36V DC input (isolation)
  • *The weight information is for reference purpose.The actual weight will vary according to then options you choose,for example,the touch/glass option.
