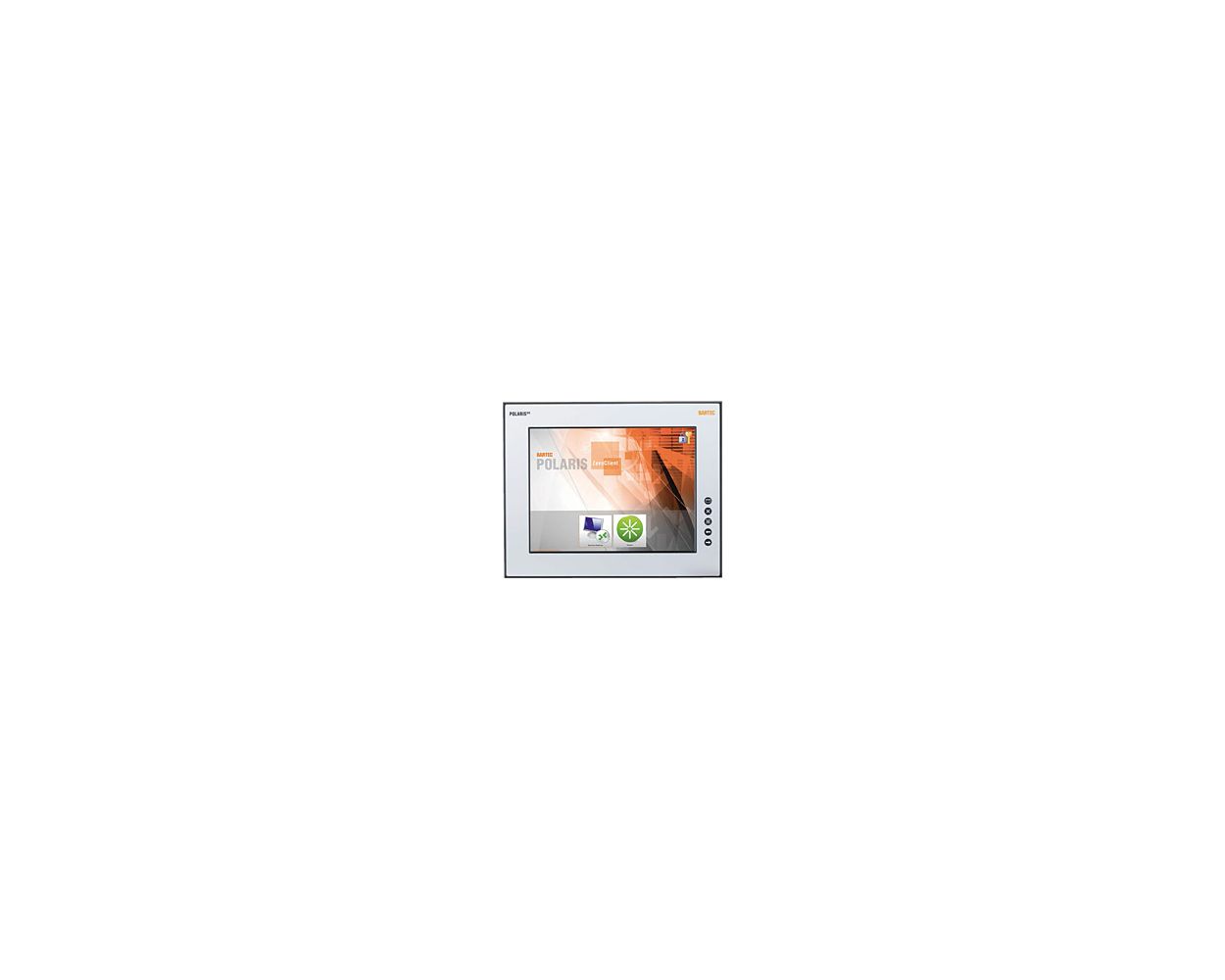

POLARIS REMOTE ZeroClient HMI 15" - Zone 1/21
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
The POLARIS ZeroClient series is the modern safe remote HMI series for the Zone 1 hazardous area. The connection is based on the RDP7 protocol to control a remote computer.
POLARIS REMOTE ZeroClient HMI 15" - Zone 1/21
DESCRIPTION
The POLARIS ZeroClient series is the modern safe remote HMI series for the Zone 1 hazardous area. The connection is based on the RDP7 protocol to control a remote computer. The ZeroClient shell, developed by BARTEC itself, comes in a user-friendly tile look and was designed in conformance to today’s safety standards to prevent any risks emanating from the user or the network. The wired electrical connections are made via a terminal compartment in the “e” (increased safety) type of protection. State-of-the-art display technology provides optimum contrast even with a large viewing angle. The front-panel fitting assures easy installation. On request, the devices are also available as turn-key system solutions in stainless-steel enclosures as wall, floor or ceiling mounting versions. Intrinsically safe input devices can also be connected. The optional (intrinsically safe) touchscreen offers the ultimate in operating comfort.
FEATURES
- Safety principle
- Direct linkage in explosive areas
- Ethernet interface
- Easy front panel fitting
- Graphic-capable TFT colour display
TECHNICAL DATA
| Protection class | IP 65 (front) IP 54 (back) |
| Structure | Front-panel fitting |
| Dimensions | (width x height x depth) 411 mm x 332 mm x approx. 135 mm |
| Wall cut-out | 394.5 mm x 315.5 mm + 0.5 mm |
| Material | Front: polyester foil on anodised aluminium plate (conditionally UV-resistant) Back: bichromated sheet steel |
| Storage temperature | -20 °C to +50 °C |
| Humidity | 5 to 95 % non-condensing |
| Vibration | 0.7 g/1 mm; 5 Hz-500 Hz pulse in all 3 axes |
| Shock resistance | 15 g/11 ms pulse in all 3 axes |
| Weight | Approx. 23 kg |
| Display | 15" graphics-capable TFT colour display 16.7 million colours XGA resolution 1024 x 768 pixels Brightness 50 cd/m2 Visible area approx. 304 x 228 mm Contrast 700:1 Antireflection-coated glass pane Optional touchscreen (resistive) |
| Backlighting | LED technology Service life approx. 50,000 hours (at +25 °C) |
| Interface | 1 x Ex e Ethernet 100/10BaseT (optical fibres optional) 1 x Ex e USB 1 x Ex i USB 2 x Ex i PS/2 for intrinsically safe keyboard and mouse |
| Voltage | DC 24 V ± 10 % AC 100 to 230 V, 50 to 60 Hz |
| Power | Pmax. < 70 W |
ACCESSORIES
| Accessory | Price | Datasheet |
| Keyboard | Call For Price |  Datasheet.pdf |
| Enclosure for Mouse and Keyboard | Call For Price | Datasheet.pdf |
| Mouse | Call For Price | Datasheet.pdf |
| Trackball, Joystick | Call For Price | Datasheet.pdf |
| Touchpad | Call For Price | Datasheet.pdf |
| Connection Cable for Keyboard and Mouse | Call For Price | Datasheet.pdf |
| Reinforcement Frame | Call For Price | Datasheet.pdf |
| Mounting Clamps Set | Call For Price | Datasheet.pdf |
| LAN STP Cable | Call For Price | Datasheet.pdf |
| Power Pack for Local Unit | Call For Price | Datasheet.pdf |
| 19" Rack Mounting for Local Unit | Call For Price | Datasheet.pdf |
| USB to PS/2 Converter | Call For Price | Datasheet.pdf |
| Local Unit/STP Cable Black Box Brand | Call For Price | Datasheet.pdf |
| Local Unit/STP Cable IHSE Brand | Call For Price | Datasheet.pdf |
| KVM Cable | Call For Price | Datasheet.pdf |
| Standard Stainless Steel Enclosure with Adapter Connection without Stand | Call For Price | Datasheet.pdf |
| Exclusive II Stainless Steel Enclosure with Adapter Connection | Call For Price | Datasheet.pdf |
| Stainless Steel Enclosure - Swivel/Tilt without Desktop Mount | Call For Price | Datasheet.pdf |
| Desk Mounting for Enclosure 15"/19.1" Series | Call For Price | Datasheet.pdf |
| Support Arm for Wall Mounting | Call For Price | Datasheet.pdf |
| Stand for Floor Mounting for Exclusive II Stainless Steel Enclosure | Call For Price | Datasheet.pdf |
| Standard Stainless Steel Enclosure with Additional Fitted Components | Call For Price | Datasheet.pdf |
APPROVALS
ATEX:
II 2G Ex db eb q [ib] IIC T4 Gb II 2D Ex tb IIIC T120 °C Db
IECEx:
Ex db eb q [ib] IIC T4 Gb
Ex tb IIIC T120 °C Db
DOWNLOADS
PRICES
| ATEX and IECEx Zone 1 and 21 | 17-71V1-4076/Z000/.200 | € 7.078,50 |
| ATEX Zone 2 and 22 | B7-72V1-4076/Z000/.200 | € 5.662,00 |
