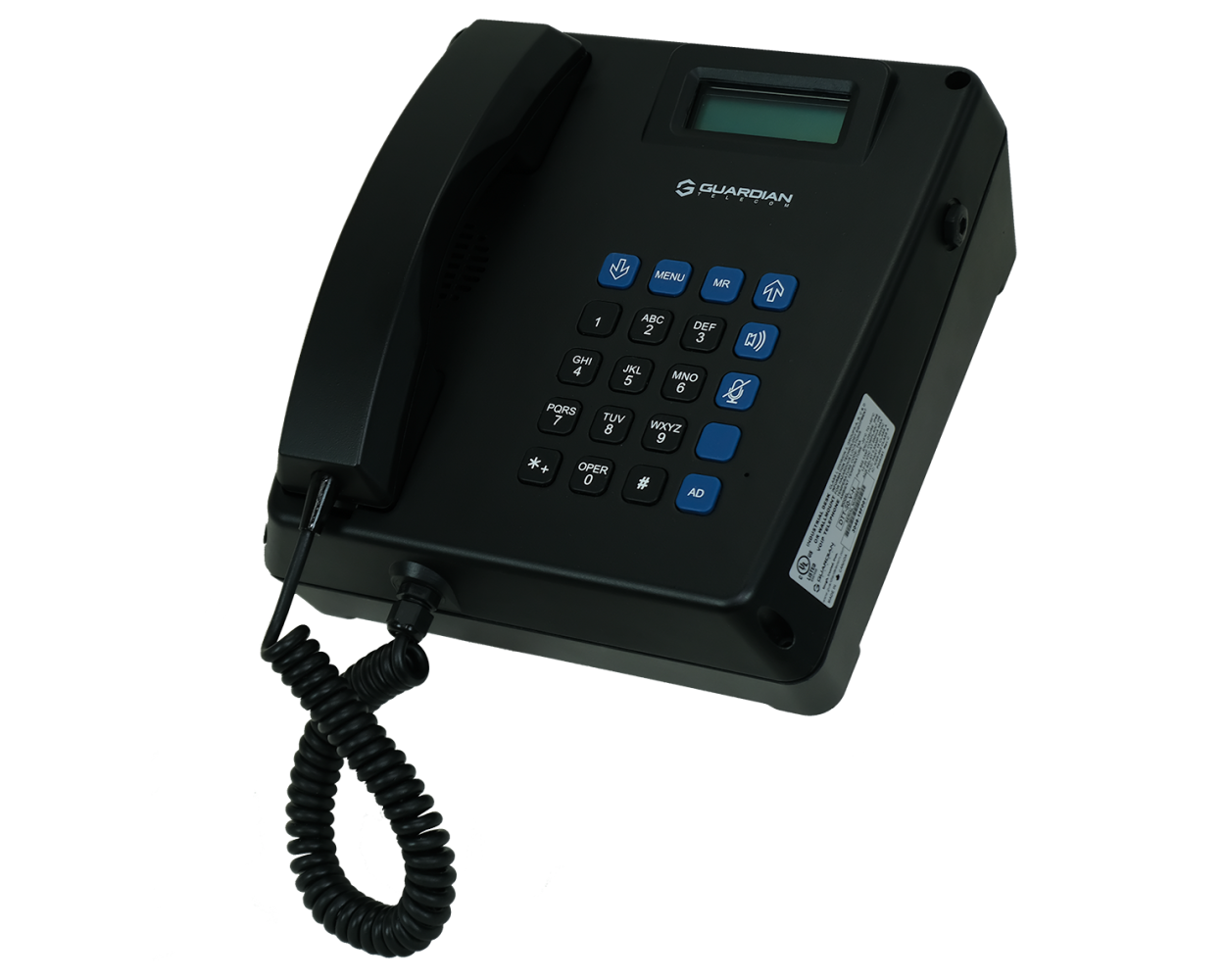

ATEX DTT-50-V Desktop/Wall Mount Telephone

Call for Price
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
SKU
atex_id_840

ATEX DTT-50-V Desktop/Wall Mount Telephone




The DTT-50-V telephone with coil handset cord is a non-hazardous rated, IP version of Guardian’s Zone 1 DTT-50-Z telephone. It has a Type 4X, IP66 weather rating without being housed in a separate enclosure.

This unit has a few more standard features than our normal weather resistant units including a hands free speakerphone and a built-in ring detect relay.




All DTT-V and DTR-V models can be wall mounted or used as a desk telephone.


IP Features
•  PoE 802.3af enabled (Power-over-Ethernet) or
   alternate power source
•  Compatible with most SIP-based IP-PBX servers
   that comply with SIP RFC 3261
•  Network web management
•  Guardian Discovery Utility makes it easy to
   detect, locate and launch the web based
   configuration screens
•  Product self diagnostic testing available through
   web interface
•  Network adjustable earpiece volume and
   microphone sensitivity
•  Network downloadable firmware
•  Remote programming – allows you to manage
   your network from a central location

Product Features
•  High impact thermoset resin industrial
   housing and ergonomic heavy duty handset
   – IP-66 compliant
•  Back-lit LCD display – 2 line x 16 character:
   English, French or Spanish
•  Reversible base for desktop or wall mount
   configurations
•  Audio modes – handset and hands-free speaker
   phone or optional headsets. Note: when the
   optional headset is used the speaker phone
   feature is not available
•  Corrosion resistant hardware
•  Noise canceling microphone
•  Magnetic reed hook switch to reduce parts
   subject to wear
•  Service temperature range from -22° to +140°F
   ( -30° to +60°C )
•  Removable handset retainer latches on cradle
•  Large urethane coated watertight silicon keypad
•  Autodial, memory, mute and menu configuration
   keys
•  Programmable auto hang-up timer
•  Hearing-aid compatible (HAC) receiver
•  Heavy duty coil handset cord
•  Built in auxiliary relay to switch up to
   0.5A @ 30VDC
•  Two M20 and one M12 gland entries
•  Field repairable by authorized personnel



DOWNLOADS

 Certificate
