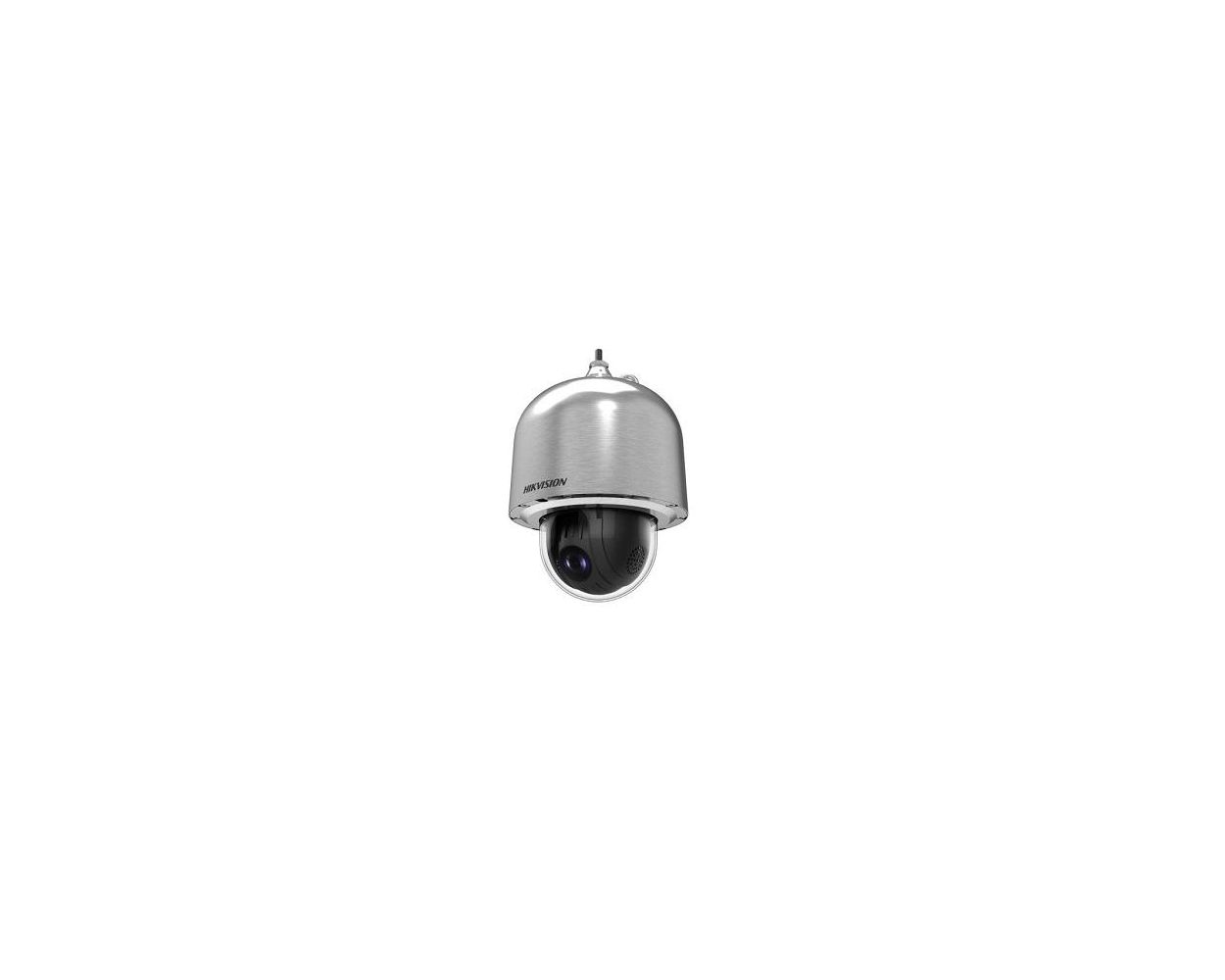

DS-2DF6223-CX (W)2MP Explosion-Proof Network Speed Dome
Call for Price
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
SKU
876856855444
• 1/1.9’’ progressive scan CMOS • Up to 1920 × 1080 resolution,23X Optical zoom • 120dB WDR, 3D DNR • IP68 • 304L stainless steel anti-corrosion materials design • Explosion-Proof Certificate No.:TÜ V 16 ATEX 7950X, IECEx TUR 16.0050X
DS-2DF6223-CX (W)2MP Explosion-Proof Network Speed Dome
| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/1.9" HD CMOS sensor |
| Effective Pixels: | | | 1920(H)x1080(V) |
| Signal System: | | | PAL/NTSC |
| Minimum Illumination: | | | Color: 0.002 Lux @(F1.5, AGC ON) B/W: 0.0002 Lux @(F1.5, AGC ON) |
| White Balance: | | | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC: | | | Auto/Manual |
| BLC: | | | ON/OFF |
| HLC: | | | Support |
| Smart defog: | | | Support |
| WDR: | | | 120dB |
| Shutter Time: | | | 1/1 s to 1/30,000 s |
| Day& Night: | | | ICR |
| Digital Zoom: | | | 16× |
| Privacy Masking: | | | 24 privacy masks programmable; optional multiple colors and mosaics |
| Auto Focus: | | | Auto / Semi-automatic / Manual |
| Lens | ||
| Focal Length: | | | 5.9 mm to 135.7 mm, 23× optical zoom |
| Zoom Speed: | | | Approx. 7.4 s (Optical Lens, Wide-Tele) |
| Angle of View: | | | 59.8° to 2.0° (Wide-Tele) |
| Minimum Working Distance: | | | 10 mm to 1500 mm (Wide-Tele) |
| Aperture Range: | | | F1.5 to F4.5 |
| Pan & Tilt | ||
| Pan Range: | | | 360°endless |
| Pan Speed: | | | Configurable, from 0.1°/s to 300°/s Preset Speed: 540°/s |
| Tilt Range: | | | Tilt: 0°~90° |
| Tilt Speed: | | | Configurable, from 0.1°/s to 240°/s Preset Speed: 400°/s |
| Proportional Zoom: | | | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: | | | 300 |
| Patrol: | | | 8 patrols, up to 32 presets for each patrol |
| Pattern: | | | 4 pattern scans, record time over 10 minutes for each scan |
| Power loss recovery: | | | Support |
| Park Action: | | | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display: | | | ON/OFF |
| Freeze Frame: | | | Support |
| Smart-tracking: | | | Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger Smart tracking when patrol between multiple scenarios |
| Alarm | ||
| Alarm Input: | | | 7 Inputs |
| Alarm Output: | | | 2 |
| Alarm Actions: | | | Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel |
| Input & Output | ||
| Monitor Output: | | | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC |
| Audio Input: | | | 1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10% |
| Audio Output: | | | 1 Audio output interface Line level, impedance: 600Ω |
| Network | ||
| Ethernet: | | | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution: | | | 1920×1080 |
| Main Stream: | | | 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720) |
| Sub Stream: | | | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) |
| Third Stream: | | | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) |
| Image Compression: | | | H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile |
| ROI encoding: | | | Support 24 areas with adjustable levels |
| Audio Compression: | | | G.711ulaw/G.711alaw/G.726/MP2L2/G.722 |
| Protocols: | | | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| No. of Simultaneous Users: | | | Up to 20 users |
| Three-Stream: | | | Support |
| Mini SD Card: | | | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
| User/Host Level: | | | Up to 32 users 3 levels: Administrator, Operator and User |
| Security Measures: | | | User authentication (ID and PW), Host authentication (MAC address) IP address filtering |
| Client GUI | ||
| Date & Time Display: | | | Time: Week: Date, 6 formats on the Client |
| Client: | | | Support iVMS-4200 |
| Web Browser: | | | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language |
| General | ||
| RS-485 Protocols: | | | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Menu Language: | | | English |
| Power Consumption: | | | 100 VAC to 240 VAC, Max.: 60 W |
| Working Temperature/Humidity: | | | -40° C to 60°C (-40° F to 140° F) |
| Dimensions: | | | Φ 281 mm × 405 mm (11.06" × 15.94") |
| Weight (approx.): | | | Approx. 22 kg (48.5 lb) |
| Mount Option: | | | DS-1685ZJ-X Wall Mounting Bracket (Included); DS-1686ZJ-X Pendant Mounting Bracket (Optional) |
Downloads
Datasheet of DS-2DF6223-CX(W).pdf
User manual of DS-2DF6223-CX (W).pdf
