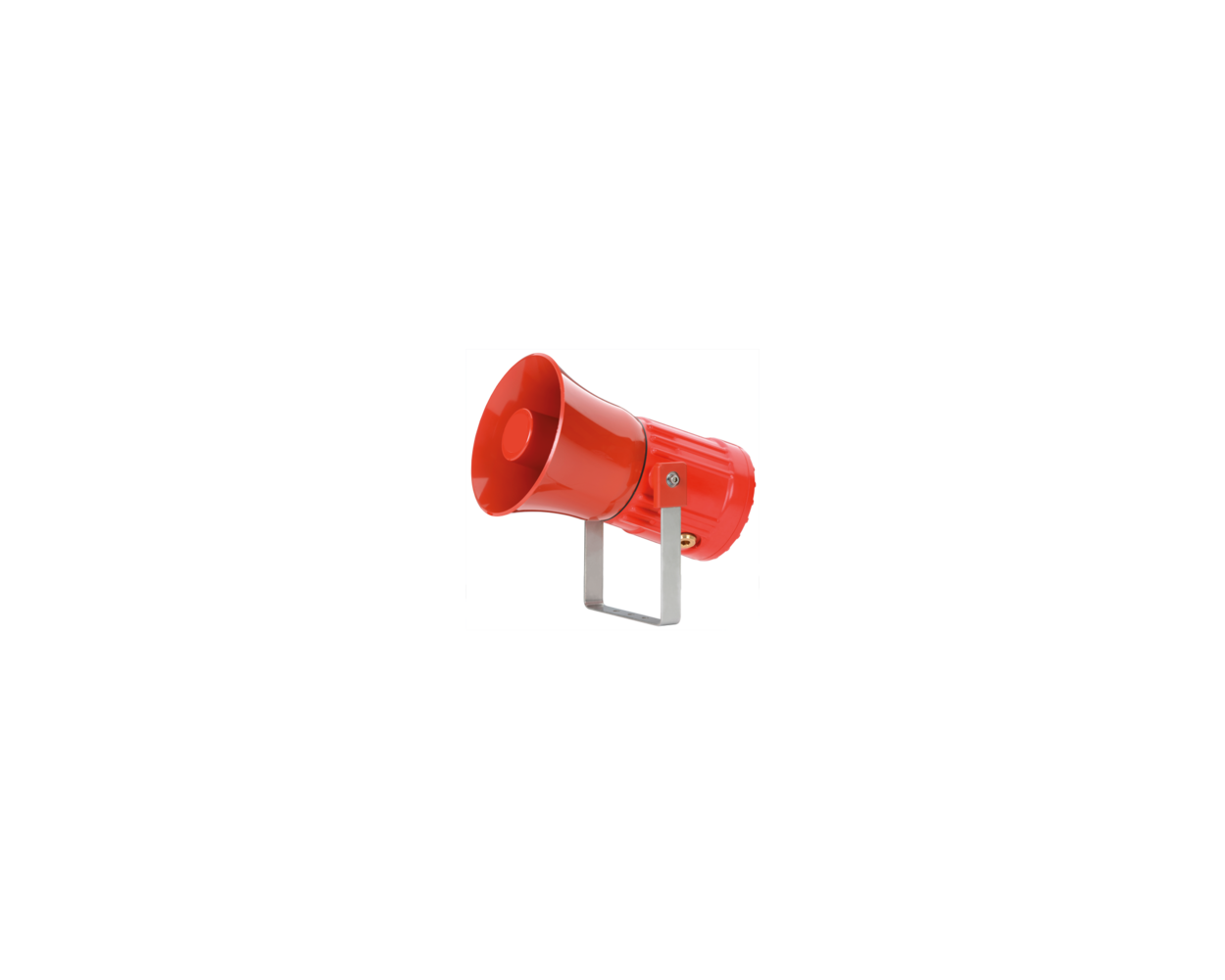

GNExL1 PA Loudspeaker - Zone 1 - 15W - 70/100V

Call for Price
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
SKU
42326158

The flameproof GNExL1 PA loudspeaker is IECEx and ATEX approved, suitable for Zone 1 & Zone 2 applications. Rated power: 15W, available in 70V/100V line transformer and 8 & 16 Ohm low impedance versions. The GNEx range features enclosures manufactured from GRP (glass reinforced polyester), moulded in natural red, but also available in other colours. The re-entrant flare horn is high impact, fire retardant ABS. All models contain dual cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.

GNExL1 PA Loudspeaker - Zone 1 - 15W - 70/100V

The flameproof GNExL1 PA loudspeaker is IECEx and ATEX approved, suitable for Zone 1 & Zone 2 applications. Rated power: 15W, available in 70V/100V line transformer and 8 & 16 Ohm low impedance versions.

The GNEx range features enclosures manufactured from GRP (glass reinforced polyester), moulded in natural red, but also available in other colours. The re-entrant flare horn is high impact, fire retardant ABS. All models contain dual cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.

FEATURES

  • Very large termination area.
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • IN & OUT terminals


SPECIFICATIONS


SPL: 102dB +/-3dB @ 1w @ 1m (Pink)
113dB +/-3dB @ 15w @ 1m (Rated)
Rated power: 15 Watts RMS
70v line tappings: 15w / 7.5w / 3w / 1w
100v line tappings: 15w / 7.5w / 3w / 1w
Low impedence: 8 Ohm or 16 Ohm
Dispersion: 120° @ 1kHz & 32° @ 4kHz
Frequency range: 400Hz to 8000 Hz
DC Line monitoring: 2.2µF Capacitor (Transformer)
470µF Capacitor (Low impedance)
Ingress protection: IP66/67
Housing material: GRP
Colour: RAL3000 Red
(others available on request)
BExL15 flare: High impact UL94 V0
& 5VA FR ABS (Red)
Cable entries: Dual M20 ISO
Terminals: 0.5 to 4.0mm² cables.
Relative humidity: 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
Weight: 70/100V line: 3.8kg/8.36Ibs Low imp.: 3.45kg/7.59Ibs

APPROVALS

  • ATEX certificate: SIRA 13ATEX1139X,
  • IECEx certificate: IECEx SIR 13.0029X,
  • Ex EAC TR CU 012/2011 certified: KZ.1510019.22.01.00271

CODING

  • II 2G Ex d IIC T4 Ta. -60° to +50°C
  • II 2G Ex d IIC T3 Ta. -60° to +70°C
  • II 2G Ex d IIB T6 Ta. -60° to +50°C
  • II 2G Ex d IIB T5 Ta. -60° to +65°C
  • II 2G Ex d IIB T4 Ta. -60° to +70°C

DOWNLOADS

 Datasheet.pdf

 Atex-certificate.pdf

 IECEx-certificate.pdf
