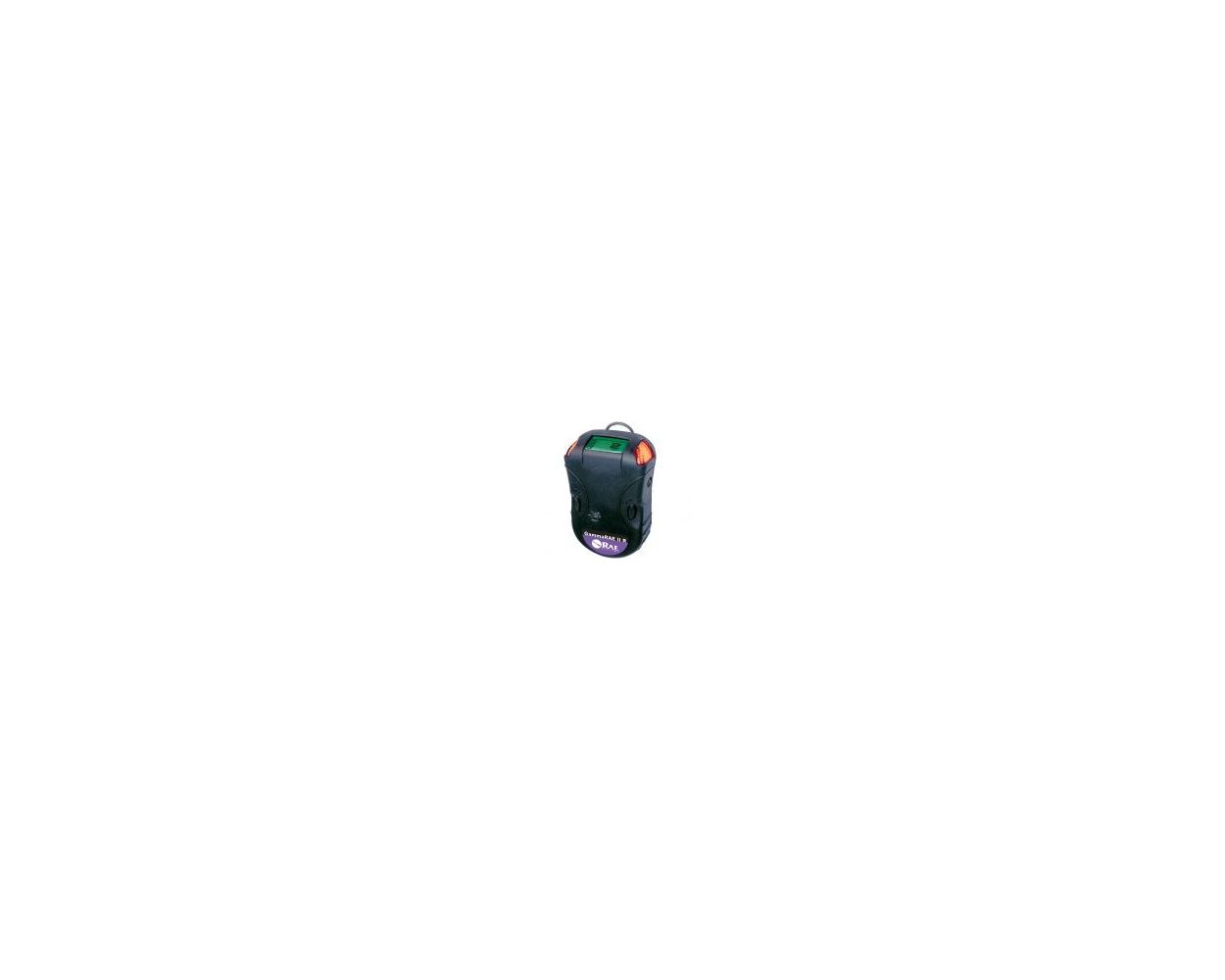

ATEX Radiation Detector GammaRAE II
Intrinsically Safe Full Range Gamma Radiation Detector
The ATEX Radiation Detector is an Zone 0 certified gamma radiation detector and full range dosimeter in a single instrument. The ATEX Radiation Detector has been designed to specifically meet the needs of first responders, the GammaRAE II has a rapid response and accurate dose measurement.
The ATEX Radiation Detector has an sensitive CsI scintillator for excellent search capability and energy compensated PIN diode sensor for high dose rate range and accurate dosimeter capabilities. The GammaRAE II ATEX Radiation Detector has prominent visible, audible and vibration alarms which alerts first responders to radioactive threats, the ATEX Radiation Detector accurately measures accumulated dose to the wearer and is immersible in water for easy decontamination.
The ATEX Radiation Detector has a continuous digital readout in Rem/hour (μR/h & mR/h) or in Sievert/hour (μSv/h & mSv/h) and counts per second (cps). The ATEX Radiation Detector GammaRAE II has a top-mounted, invertible display. The ATEX Radiation Detector has two operation keys, simple intuitive programming and long calibration life. The ATEX Radiation Detector has two AA Alkaline batteries which last up to 600 hours and a large, 30-000 point datalog capacity which can be downloaded via cable- free bluetooth connection.
Specifications of the ATEX Radiation Detector
Sensor
| Radiation Sensors: | 3cc CsI (TI) with Photodiode (Low channel) Energy-Compensated PIN Diode (High channel) |
| Energy Range: | 0.06 to 3.0 MeV |
| Dose Equivalent Rate (DER) Range for 137Cs: | 1 μR/h to 600 R/h (0.01 μSv/h to 6 Sv/h) |
| Accuracy of DER: | ±20% |
| Dosage Range: | 1 μR to 999.9 R (0.01 μSv to 9.9 Sv) |
| Background Reference: | Background level reference set automatically on start-up (Search Mode only), plus user-initiated as needed |
| Calibration: | None required. Periodic functional test recommended using 1 μCi and 16 μCi 137Cs check sources. Factory calibration available if needed. |
Alarms
| Time to Alarm: | <2 seconds |
| Alarms: |
|
| Alarm Settings: |
|
Datalogging and Communication
| Datalog Size: | 30,000 data points (20 days at 60-second intervals) |
| Datalog Modes: |
Continuous: Logs data at all times Event-Driven: Starts logging data on alarm |
| Datalog Interval: | User programmable, 1 to 3,600 seconds |
| Communication: | Built-in Bluetooth® radio interfaces with computer for datalog download and configuration changes |
Power
| Battery: | 2 AA alkaline batteries |
| Operating Period: | Up to 600 hours |
Operating Environment
| Temperature: | -20° C to 50° C (-4° F to 122° F) |
| Temperature Alarm: | Temperatures above 50° C (122° F) will cause a high-temperature error message |
| Humidity: | 0% to 95% (non-condensing) |
| Shock Resistance: | Passes drop test from 1.5 m (59") |
| IP Rating: | IP-67 (immersible) |
| Intrinsic Safety: | Certified to meet Class I, Div. I, Groups A, B, C, D, T4 ATEX II IG EEx ia IIC T4 |
Physical Characteristics
| Display: | Graphic LCD with 1.2" x 0.75" (30.5 mm x 19 mm) viewable area can be flipped for view by user; Radiation intensity displayed in cps or dosage rate in divisions of R/h or Sv/h |
| Direct Readout: | Dose rate, peak, min, total dose, battery status, time, temperature |
| Ergonomics: | Nonslip rubber housing with grippable ridges securely fits hand or glove |
| Keypad: | 2 operation/program buttons |
| Size: | 4.92" x 2.68" x 1.38" (125 mm x 68 mm x 35 mm) |
| Weight: | 9.5 oz (270 g) |
| Attachments: | Rugged metal belt clip and wrist strap |
Downloads
Gallery
