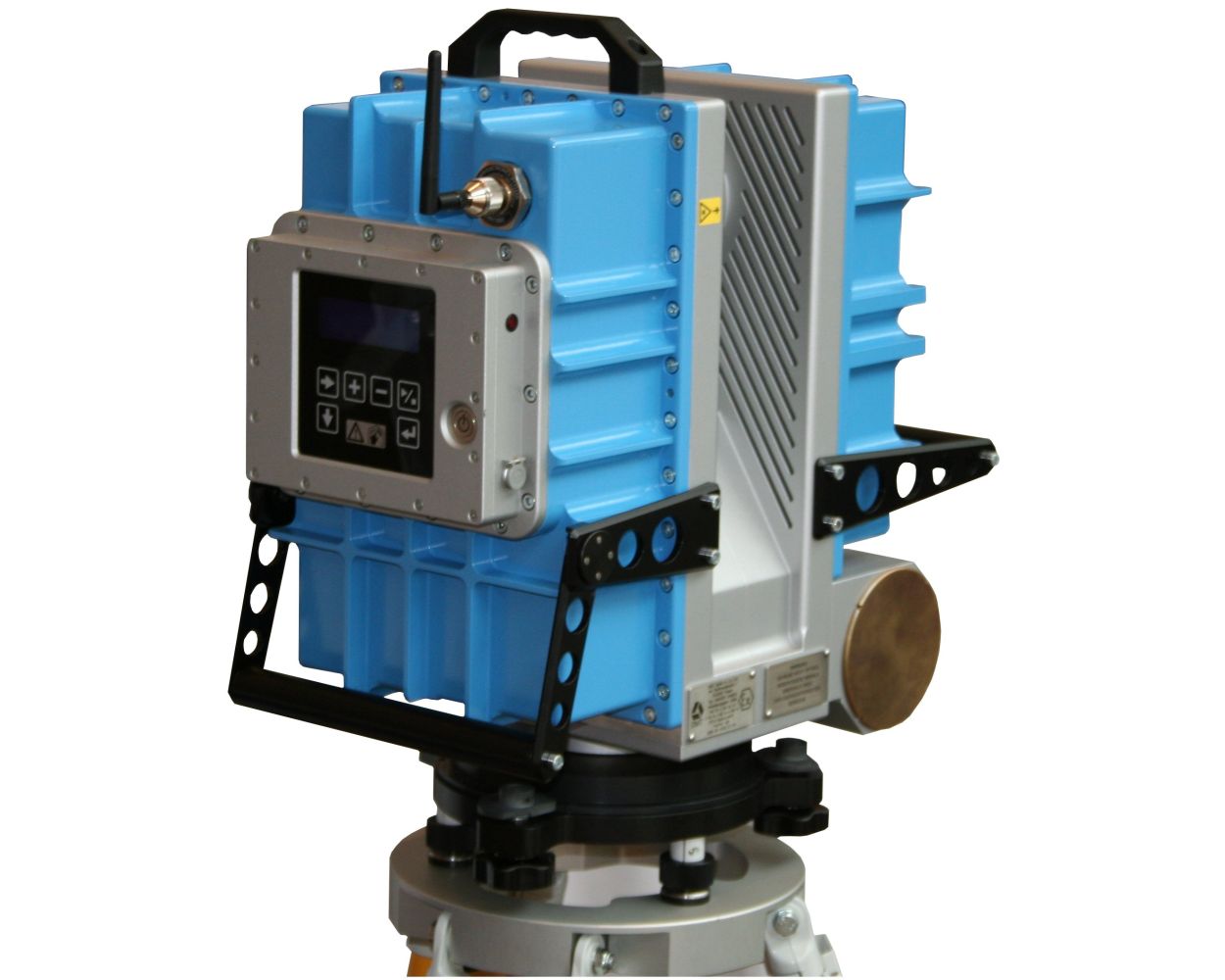

ATEX Laser Scanner Z+F Imager 5006EX

Z+F Imager 5006EX, The new way of scanning

The Imager 5006EX is the first explosion proof 3D laser scanner approved for use in industrial and mining applications under explosive conditions. The ATEX 3D Laser Scanner has an excellent accuracy and can capture data at an acquisition rate of 508,000 points per second. The scanned data is stored on the Imager 5006EX internal hard disk capable of storing 60GB of data allowing intense scanning and has an ambiguity interval up to 79 metres.

The ATEX 3D Laser Scanner Images 5006EX is operated through an integrated keyboard display combination and is equipped with Wi-Fi for external operation allowing users to work with a PDA or notebook from distance. The 3D Laser Scanner has a changeable internal battery pack that allows wireless scanning for 1 hour and has been designed to allow the user to change it in an explosive environment.

Advantages

• Stand alone concept for easiest handling and fast assembly
• Ambiguity interval up to 79 metres
• Premium accuracy when surveying quickly
• Very low range noise in the whole point cloud
• Battery pack can be changed in explosive environments
• Unique handling concept
• Operation via keyboard/display
• Wireless operation via PDA
• Operation via notebook/ network link

The ATEX 3D Laser Scanner can be used for applications such as:

• As-build documentation for reconstruction or new development
• Check and control of facilities
• Acceptance inspection of contractual work
• Variance comparison
• Volume calculation
• DEformation dcoumentation
• Monitoring

Downloads

 ATEX 3D Laser Scanner Z+F Imager 5006EX.pdf
