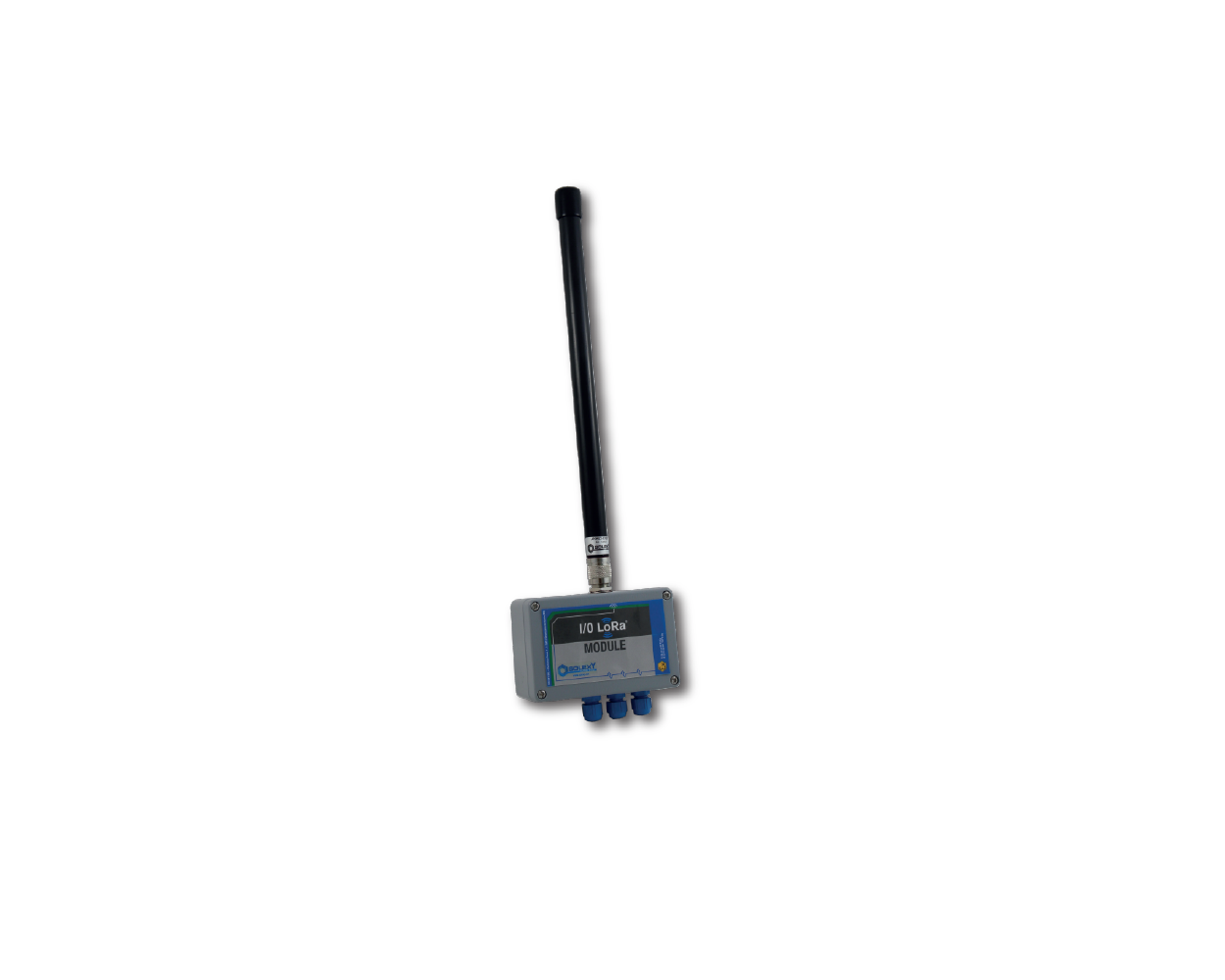

Lora INTRINSICALLY SAFE I/O MODULE - 4 digital in / 1 out / 1 analog 4-20 mA / 0-10V - Zone 1

Lora INTRINSICALLY SAFE I/O MODULE - 4 digital in / 1 out / 1 analog 4-20 mA / 0-10V - Zone 1

ora INTRINSICALLY SAFE I/O MODULE - 4 digital in / 1 out / analog 4-20 mA / 0-10V - Zone 1

The intrinsically safe Solexy LoRaWAN® I/O Module allows the monitoring and control of digitals and analog input and digital output in hazardous locations. The wide number of analog and digital inputs available makes the Solexy LoRaWAN® I/O Module a multipurpose solution for multiple applications like temperature, pressure, flow and anything that can be measured by a 4-20 mA or 0-10V sensor or through RS485 serial port. Digital output (relay NC/NO) allows the establishing of a bi-directional communication for all applications where is necessary to receive feedback from the field. The modular design gives to the customer the possibility to have a cost-effective solution having the possibility to select the appropriate input number and type based according to its needs. The battery-operated layout ensure an easy a faster installation in all applications where monitoring is required including temporary installation. The Intrinsically Safe design allows cost-effective wiring and the easy battery replacement in the field.

RF TRANSCEIVER
Frequency (1) EU: 863 - 870 MHz US: 902 - 928 MHz

Transmit Power +14 dBm +19 dBm
Receiver Sensitivity -137 dBm -130 dBm

FIRMWARE
Protocol LoRaWAN®, Class A

Transmission cycles Configurable from 1 to 3600 sec.
Data compression Yes (differential coding)

Activation method Activation by Personalization (ABP) or Over-The-Air Activation (OTAA)
Data encryption AE128

I/O MODULE
Temperature Thermocouple Type K
 PT100 / PT1000Analog 4-20 mA
 0-10VDigital 4 digital input | 1 digital output (relay NC / NO)
Serial RS485

OUTPUT CHARACTERISTICS
4-20 mA gauge voltage supply 12 Vdc @ 40mA (Ex i)0-10V gauge voltage supply 12 Vdc @ 40mA (Ex i)

POWER SUPPLY
Voltage 3.6V / 7200 mAh - Replaceable lithium battery
 9 - 36V / 500 mW- External power supply
Autonomy 5 years with 1 transmission every 10 minutes
 (high ambient temperature can reduce battery autonomy)

ENCLOSURE
Dimensions Aluminum 125 x 80 x 60 mm (antenna excluded)
 Plastic 120 x 122 x 91 (antenna excluded)
IP rating IP65 / IP67

ENVIRONMENT
Ambient temperature range -40°C +80°C
