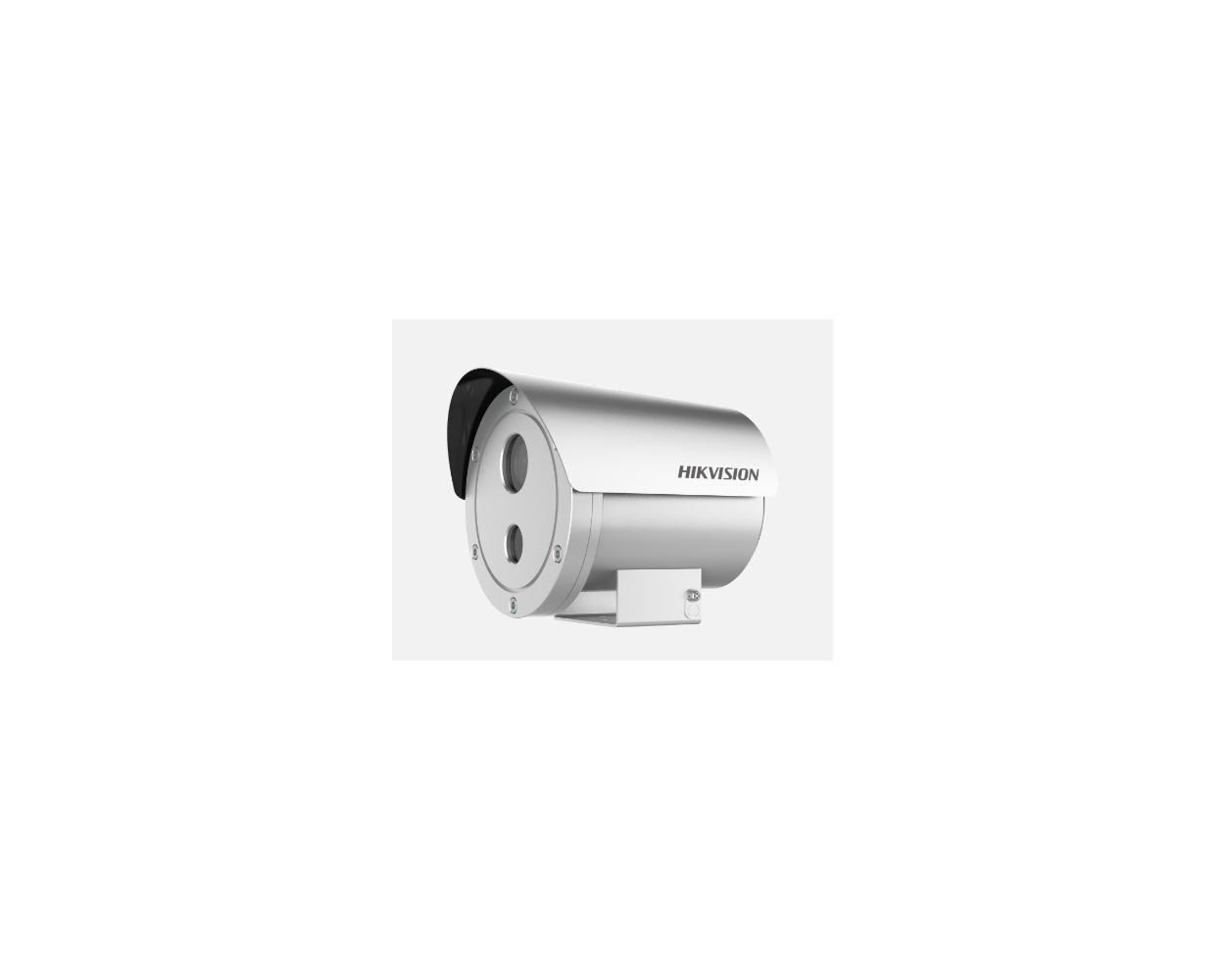

DS-2XE6242F-IS 316L(D) Bullet Explosion-Proof Network Camera

          Camera

• Image Sensor1/3" Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.01 lux @ (F1.2, AGC ON), B/W: 0.001 lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time1 s to 1/100,000 s
• Day & NightIR cut filter

          Lens

• Lens TypeFixed focal lens, 4, 6, 8, and 12 mm optional
• Focal Length & FOV

  4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°

  6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 60°

  8 mm, horizontal FOV 39°, vertical FOV 22°, diagonal FOV 46°

  12 mm, horizontal FOV 25°, vertical FOV 14°, diagonal FOV 28°

• Lens MountM12
• ApertureF1.6

          DORI

• DORI

  4 mm:

  D: 80 m, O: 31.7 m, R: 16 m, I: 8 m

  6 mm:

  D: 128 m, O: 50.8 m, R: 25.6 m, I: 12.8 m

  8 mm:

  D: 160 m, O: 63.5 m, R: 32 m, I: 16 m

  12 mm:

  D: 248 m, O: 98.4 m, R: 49.6 m, I: 24.8 m

           Illuminator

• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• IR WavelengthUp to 850 nm

          Video

• Main Stream

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)

• Third Stream

  50 Hz: 1 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)

  60 Hz: 1 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)

• Video Compression

  Main stream: H.265/H.264/H.265+/H.264+

  Sub stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline profile/main profile/high profile
• H.265 TypeMain profile
• Region Of Interest (ROI)5 customized regions for each stream, and face dynamic tracking
• Target CroppingYes

          Audio

• Audio TypeMono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
• Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes

          Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G), PSIA, CGI, ISAPI
• User/HostUp to 32 users, 3 levels: administrator, operator and user
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11

  Plug-in free live view: Chrome 45.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

  Not recommended: Safari 11+, Edge


• Image SettingsRotate mode, saturation, brightness, contrast adjustable by client software or web browser

• Day/Night SwitchAuto/Schedule/Alarm Trigger
• Wide Dynamic Range (WDR)120 dB
• Image EnhancementBLC/3D DNR
• Privacy Mask8 programmable polygon privacy mask
• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

         Interface

• Audio1 line in, 1 line out
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage

  Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB

  *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

• Alarm1 alarm input, 1 alarm output

          Event

• Basic EventMotion detection (support alarm triggered by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle))

  Scene change detection, audio exception detection

• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

          General

• Power

  100 VAC to 240 VAC, 0.15 A, 50/60 Hz, max. 7 W, terminal block

  PoE: 802.3af, Class 3, 36 to 57 V, 0.3 to 0.2 A

• Dimension202 mm × 174 mm × 172 mm (8.0"× 6.9" × 6.8")
• Package Dimension435 mm × 255 mm × 285 mm (17.1" × 10" × 11.2")
• Approx. 6.18 kg (13.62 lb.)
• With Package WeightApprox. 7.21 kg (15.90 lb.)
• Storage Conditions-30 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30°C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionMirror, anti-flicker, heartbeat, watermark, password protection, privacy mask

          Approval

• EMC

  FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)

  CE: CE-EMC (EN 50130-4: 2011+A1: 2014, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013)

  IC: IC-VoC (ICES-003 Issue 7: 2020)

  KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28)

• Safety

  UL (UL 60950-1: 2014, CAN/CSA C22.2 No. 60950-1-07: 2014)

  CB (IEC 60950-1)

  CE: CE-LVD (EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013)

• ProtectionIK08 (IEC 62262:2002), IP68 (IEC 60529-2013)
• Explosion-Proof Protection

  ATEX: II 2G Ex db IIC T6 Gb/ II 2D Ex tb IIIC T80°C Db IP68

  IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68

  For explosive gas atmospheres, the maximum surface temperature is 85°C;

  For flammable dust atmospheres, the maximum surface temperature is 80°C;

  IIC: for explosive gas atmospheres other than mines susceptible to firedamp;
