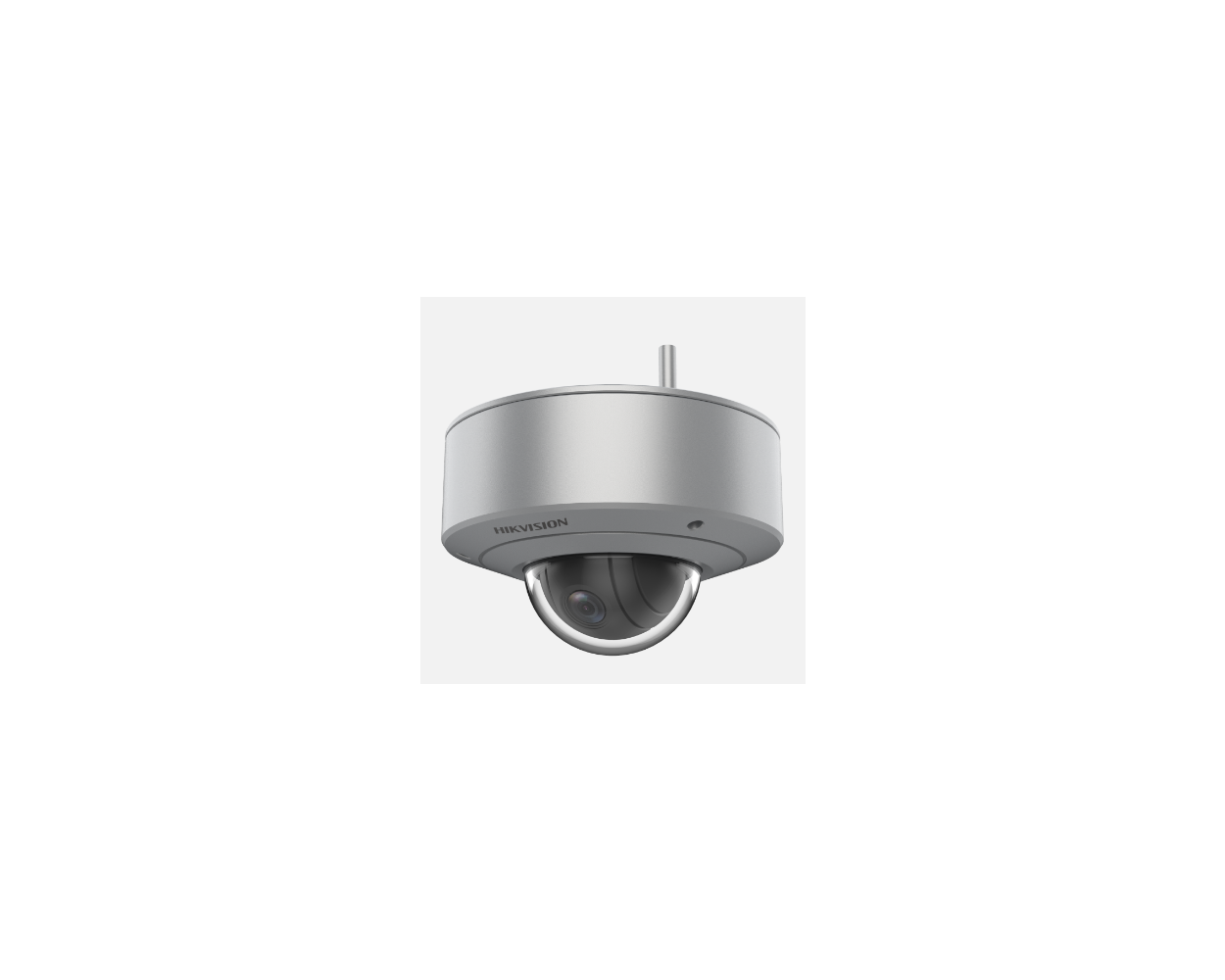

DS-2XE6146F-HS (C) Fixed Dome Explosion-Proof Network Camera

Call for Price
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
SKU
423265522

EXIR Fixed Dome Explosion-Proof Network Camera

  • Explosion-proof design: the camera has passed international ATEX & IECEx certifications, and can be used in gas and dust hazardous scenarios
  • 316L stainless steel enclosure and anti-corrosion spray treatment, protecting the camera from damage caused by sparks or corrosive materials
  • IP68 water resistant, preventing water ingress for outdoor use
  • H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
  • A built-in heater allows for start-up in ultra-low temperatures to -40 °C
  • High resolution 4 MP, capturing clear images



          Camera

  • Image Sensor1/3" Progressive Scan CMOS
  • Max. Resolution2688 × 1520
  • Min. IlluminationColor: 0.003 Lux @ (F1.0, AGC ON)
  • Shutter Time1/3 s to 1/100,000 s
  • Angle AdjustmentPan: 0° to 340°, tilt: 0° to 75°

          Lens

  • Lens TypeFixed focal length, 2.8 mm, 4 mm, and 6 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 102.5°, vertical FOV 53.4°, diagonal FOV 118.9°

    4 mm, horizontal FOV 80.2°, vertical FOV 40.8°, diagonal FOV 93.4°

    6 mm, horizontal FOV 52.5°, vertical FOV 27.4°, diagonal FOV 60.2°

  • Lens MountM12
  • ApertureF1.0
  • DORI
  • DORI

    2.8 mm, D: 54.6 m, O: 21.7 m, R: 10.9 m, I: 5.5 m

    4 mm, D: 85.4 m, O: 33.9 m, R: 17.1 m, I: 8.5 m

    6 mm, D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m

          Video

  • Main Stream

    50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

  • Third Stream

    50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)5 fixed regions for each stream
  • Target CroppingYes

          Audio

  • Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC/MP3
  • Audio Bit Rate64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)/8 to 320 Kbps (MP3)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI, ISUP 5.0
  • User/Host

    Up to 32 users

    3 levels: Administrator, Operator and User

  • Network StorageNAS (NFS, SMB/CIFS), ANR
  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Plug-in required live view: IE10, IE11

    Local service: Chrome 57.0+, Firefox 52.0+


  • Image Parameters SwitchYes
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC, HLC, 3D DNR, defog
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage

    Built-in memory card slot, support microSD/SDHC/SDXC card, up to 128 GB

    *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

  • Audio1 input (line in), 1 output (line out)
  • Alarm1 alarm input, 1 alarm output (supports max. 24 VDC, 1 A or 110 VAC, 500 mA)
  • RS-4851 RS-485 interface

          Event

  • Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event

    Line crossing detection, intrusion detection, region entrance detection, region exiting detection

    Scene change detection, unattended baggage detection, object removal detection

          General

  • Power

    12 VDC ± 20%, 0.8 A, max. 10 W, two-core terminal block

    PoE (802.3af, Class 3, 36 V to 57 V), 0.3 A to 0.2 A, max. 12.5 W

  • DimensionØ138 mm × 123.4 mm (Ø5.43" × 4.86")
  • Package Dimension251 mm × 215 mm × 189 mm (9.88" × 8.46" × 7.44")
  • Approx. 2810 g (6.2 lb.)
  • With Package WeightApprox. 4040 g (8.9 lb.)
  • Startup And Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, privacy mask, password protection, watermark, IP address filter
  • HeaterYes

         Approval

  • EMC

    FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)

    CE: CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013)

    RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015

    IC: IC-VoC (ICES-003 Issue 7:2020)

    KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28)

  • Safety

    UL: UL 62368-1: 2014, CAN/CSA C22.2 No. 62368:2014

    CB: IEC 62368-1:2014

    BIS: IS 13252 (Part 1) 2010+A1:2013+A2:2015

    LOA: SANS IEC60950-1

  • EnvironmentCE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863)
  • ProtectionIP68 (IEC 60529-2013)
  • Explosion-Proof Protection

    ATEX: II 2G Ex db IIC T6 Gb/ II 2D Ex tb IIIC T80°C Db IP68

    IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68

    For explosive gas atmospheres, the maximum surface temperature is 85°C;

    For flammable dust atmospheres, the maximum surface temperature is 80°C;

    IIC: for explosive gas atmospheres other than mines susceptible to firedamp;

    For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
