DS-2XE6025G0-I(B)

Call for Price
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
SKU
DS-2XE6025G0-I(B)

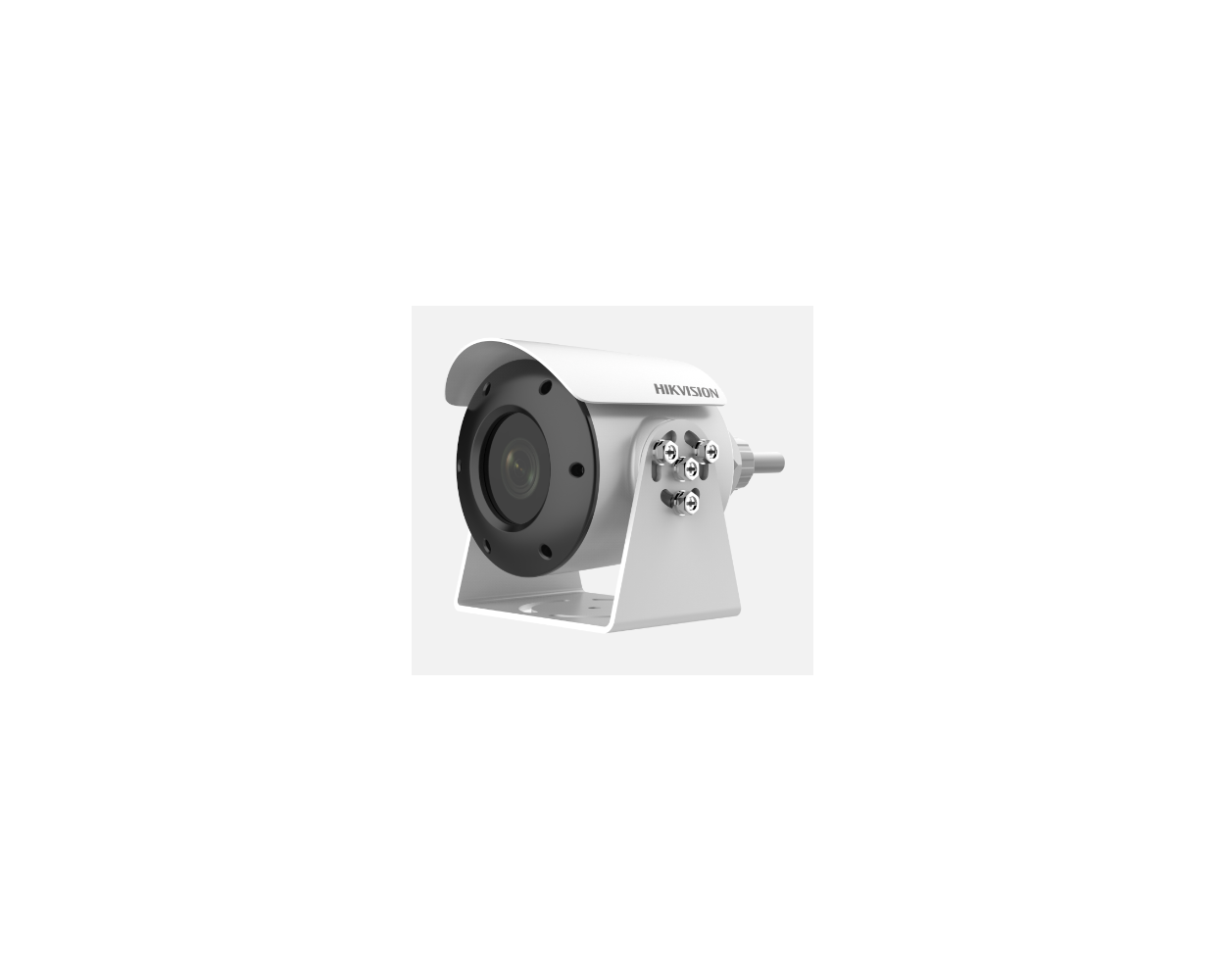

Explosion-Proof Network Camera

  • Explosion-proof design, the camera has passed international ATEX&IECEx certifications, it can be used in gas and dust hazardous scenarios
  • IP68 water resistant, there is no need to worry about water ingress when it is used in outdoor scenarios
  • Built-in IR light, IR range of 30 meters provides good visibility in low or even zero-light environment


         Camera

  • Image Sensor1/3" Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), B/W: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: -45° to 45°, tilt: -30° to 30°

          Lens

  • Lens TypeFixed focal lens, 4 and 6 mm optional
  • Focal Length & FOV

    4 mm, horizontal FOV 87.6°, vertical FOV 44.4°, diagonal FOV 104.9°

    6 mm, horizontal FOV 53.9°, vertical FOV 28.8°, diagonal FOV 62.8°

  • Lens MountM12
  • ApertureF1.6

          Illuminator

  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • IR Wavelength850 nm

          Video

  • Main Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)1 fixed region for main stream

          Network

  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP
  • Simultaneous Live ViewUp to 6 channels
  • APIISAPI, SDK
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address)
  • Network Storage

    NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
  • Web Browser

    Plug-in required live view: IE10, IE11

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+

    Local service: Chrome 57.0+, Firefox 52.0+


  • Image Parameters SwitchYes
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Image EnhancementBLC, HLC
  • Privacy Mask4 programmable polygon privacy masks

          Interface

  • Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • On-Board Storage

    Built-in memory card slot, support micro SD/SDHC/SDXC slot, up to 256 GB

    *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

          Event

  • Basic EventMotion detection, exception
  • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

          General

  • Power

    24 VDC, 0.3 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection

    PoE: 802.3af, 36 to 57 VDC, 0.30 A to 0.20 A, max. 7.5 W

  • Dimension173.5 mm × 137.8 mm × 137.8 mm (6.8" × 5.4" × 5.4")
  • Package Dimension313 mm × 213 mm × 208 mm (12.3" × 8.4" × 8.2")
  • Approx. 2.04 kg (4.5 lb.)
  • With Package WeightApprox. 2.84 kg (6.3 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionHeartbeat, anti-flicker, mirror, flash log, password reset via email, pixel counter, password protection

        Approval

  • EMC

    FCC: 47 CFR Part 15, Subpart B

    CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014

    RCM: AS/NZS CISPR 32: 2015

    IC: ICES-003: Issue 7

  • Safety

    CB: IEC 62368-1: 2014+A11

    BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

  • Environment

    CE-RoHS: 2011/65/EU

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP68: IEC 60529-2013, IK08: IEC 62262:2002
  • Explosion-Proof Protection

    ATEX: II 2 G D Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68

    IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68

    For explosive gas atmospheres, the maximum surface temperature is 85°C;

    For flammable dust atmospheres, the maximum surface temperature is 80°C;

    IIC: for explosive gas atmospheres other than mines susceptible to firedamp;

    For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
