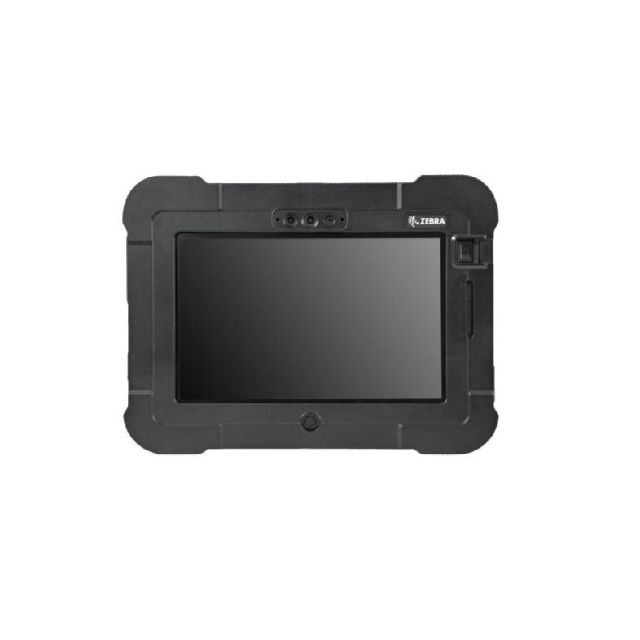

L10 ANDROID RUGGED TABLET CASE - ATEX / IECEX ZONE 2 - RTL10B1-U4AA0X0040A6

Call for Price
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
SKU
42326398

The ZEBRA XPAD L10 Series Android rugged tablet is certified for use in ATEX / IECEx Zone 2 hazardous location environments.

L10 ANDROID RUGGED TABLET - ATEX / IECEX ZONE 2 - RTL10B1-U4AA0X0040A6 - ZEBRA XPAD L10 SERIES



The ZEBRA XPAD L10 Series Android rugged tablet is certified for use in ATEX / IECEx Zone 2 hazardous location environments. This certification expands the environments where the L10 Android can be used to include more oil & gas, mining, industrial, and manufacturing opportunities. ATEX / IECEx Zone 2 certification requires that a product meet rigorous standards to ensure it is safe where flammable or explosive gasses, particles, liquids, or vapors could be excessive under abnormal conditions.

ATEX configurations feature an external armor that protects the tablet throughout service life to ensure liquid and dust protection.

• IECEx certificate No. IECEx TUR 19.0052X
• ATEX certificate No. TÜV 18 ATEX 8246 X
• II 3G Ex ec IIC T6 Gc
• II 3D Ex tc IIIB T85°C Dc


Part number:
RTL10B1-U4AA0X0040A6

Rugged Tablet, L10, Qualcomm SD660, NFC, WLAN, WWAN w/GPS, XPAD, ATEX, 10.1", Active ViewAnywhere 1000 Nit, BCR, IP54, 8 GB RAM, 128 GB eMMC, Android, ATEX Battery, EU Line Cord, RoW

The L10 ATEX units are compatible with the following existing accessories:

36 Whr ATEX IECEx Standard Battery (PN: 450173)

Screen Protector (PN: 400022)

Long Active Pen (PN: 440036)

Short Active Pen (PN: 440037)



The L10 ATEX units are
not compatible with any external module or accessory including:

XBOOK configurations

Kickstand

KickStrap

Extended life battery

Smart Card reader

AEI UHF RFID reader

Vehicle dock

Office dock

Industrial dock

Carry Case

Soft Handle

Shoulder Strap

Companion Keyboard

Serial Port

 HDMI-In Port



Frequently Asked Questions

Q: What is the dimension and weight of the ATEX configurations?
A: Dimensions / Weight:


XSLATE
• 305.1 mm x 225.6 mm x 31 mm
• 1.8 kg

XPAD
• 305.6 mm x 278.7 mm x 32 mm
• 2.1 kg


Q: Are the units tested to Mil-Std-810g?

A: No, the ATEX units are tested to the ATEX standard for durability compliance.

Q: Does ATEX / IECEX cover C1D2 certification?

A: ATEX / IECEX certification does not imply C1D1 certification, but the standard L10 Android SKUs are C1D2 certified.

Q: Are units sold prior to the certification date retroactively considered ATEX?

A: No, only units sold after the certification date are considered to be ATEX. The ATEX units feature an exterior case that will be easily recognizable as different than a standard L10 configuration.

Q: Were there mechanical changes made to the L10 for ATEX certification?

A: A specialized armor case has been created to meet ATEX requirements. The armor case provides a higher level of protection to assure the tablet enclosure is not damaged. The armor case prevents use of any external module or docking station.

Q: What environments are suitable for ATEX Zone 2 device use?

A: Zone 2 – A place in which an explosive atmosphere consisting of a mixture with air of dangerous substances in the form of gas, vapor or mist is not likely to occur in normal operation but, if it does occur, will persist for a short period only.

Q: Are there any software differences of the ATEX L10?

A: No, the underlying L10 system is the same.

Q: Can I hot swap the battery?

A: Yes, but only in a non-hazardous location. By ATEX/IECEx rule a tool must be used to remove the battery hatch to access the battery. This prevents accidental removal in a hazardous location.

Q: Why is there a screw locking the I/O door and DC door.

A: Same as above, By ATEX/IECEx rule a tool must be used to open any door. This prevents accidental access to arcing contacts in a hazardous location.

Q: Must the screw be replaced in the door when re-entering a hazardous location?

A: Yes, DC door screw, I/O door screw and battery latch cover must be screwed in place inside hazardous zone.
