Intrinsically Safe ATEX Guard Tour Reader

Call for Price
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
SKU
atex_id_279
SAP Item ID
atex_id_279

This product is EOL (End Of Life)

The ATEX Guard Tour reader is an intrinsically safe and accurate management solution, the ATEX guard tour reader benefits oil and gas sites as they do to other patrol sites. However, gas and oil sites are often more demanding for intrinsically safe equipment. The intrinsically safe ATEX certified Guard Tour Reader is explosion proof, shock and water resistant, has no button and cable port and is has a large and reliable data storage. The ATEX Guard tour reader has minimum moving parts and a clear LCD display.

This product is EOL (End Of Life)

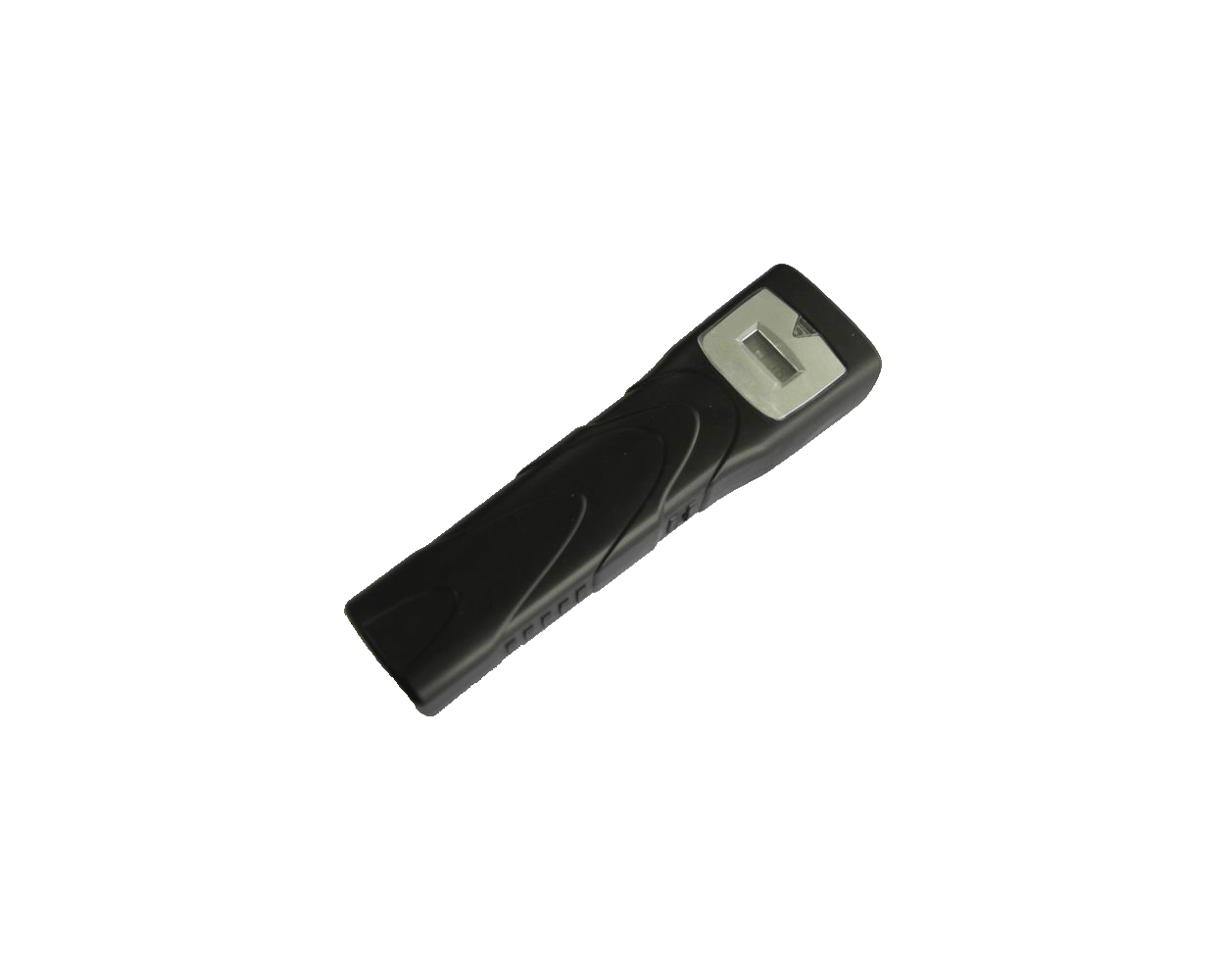

ATEX Guard Tour Reader

The ATEX Guard Tour reader is an intrinsically safe and accurate management solution, the ATEX guard tour reader benefits oil and gas sites as they do to other patrol sites. However, gas and oil sites are often more demanding for intrinsically safe equipment. The intrinsically safe ATEX certified Guard Tour Reader is explosion proof, shock and water resistant, has no button and cable port and is has a large and reliable data storage. The ATEX Guard tour reader has minimum moving parts and a clear LCD display.

The ATEX Guard Tour reader works with proximity EMID tags and cards. On every read, the ATEX Guard Tour reader  stores the tag IDs together with a time stamp in line with its clock. The ATEX Guard Tour reader uses wireless communication to transfer the data from the reader to the PC. The ATEX Guard Tour reader is compliant with all station models such as BS-1000, BS-3300, etc.

The Guard tour reader will wake up and switch on automatically to perform card reading when a valid RFID card appears within its reading range. The reader will switch to idle mode in 10 seconds after a successful read.  The readers depend on the communication station to upload data to PC, which can be done local or remote.

Documents

Click to show file






Specifications

Ex Protection Type II 2 GD(Ex ib IIB T4, Ex ibD21 T135
Compliant Tag Format 12KHz EMID
Operating Mode Automatic detection and reading
Communication Type Wireless via communication stations
Memory Flash, 30719 records
Power Supply 3V, Energy-type CR123A battery
Enviromental Protection Completely waterproof (IP65)
Housing Three-layered protection
Ambient Temperature -20C ~ +40C
Atmospheric pressure 86 kPa ~106 kPa
Humidity 0 ~ 95%
Color Black

Other Specifications

Device Model KCQ-S
Display LED
Dimension 130x38x27mm
Weight 150g
