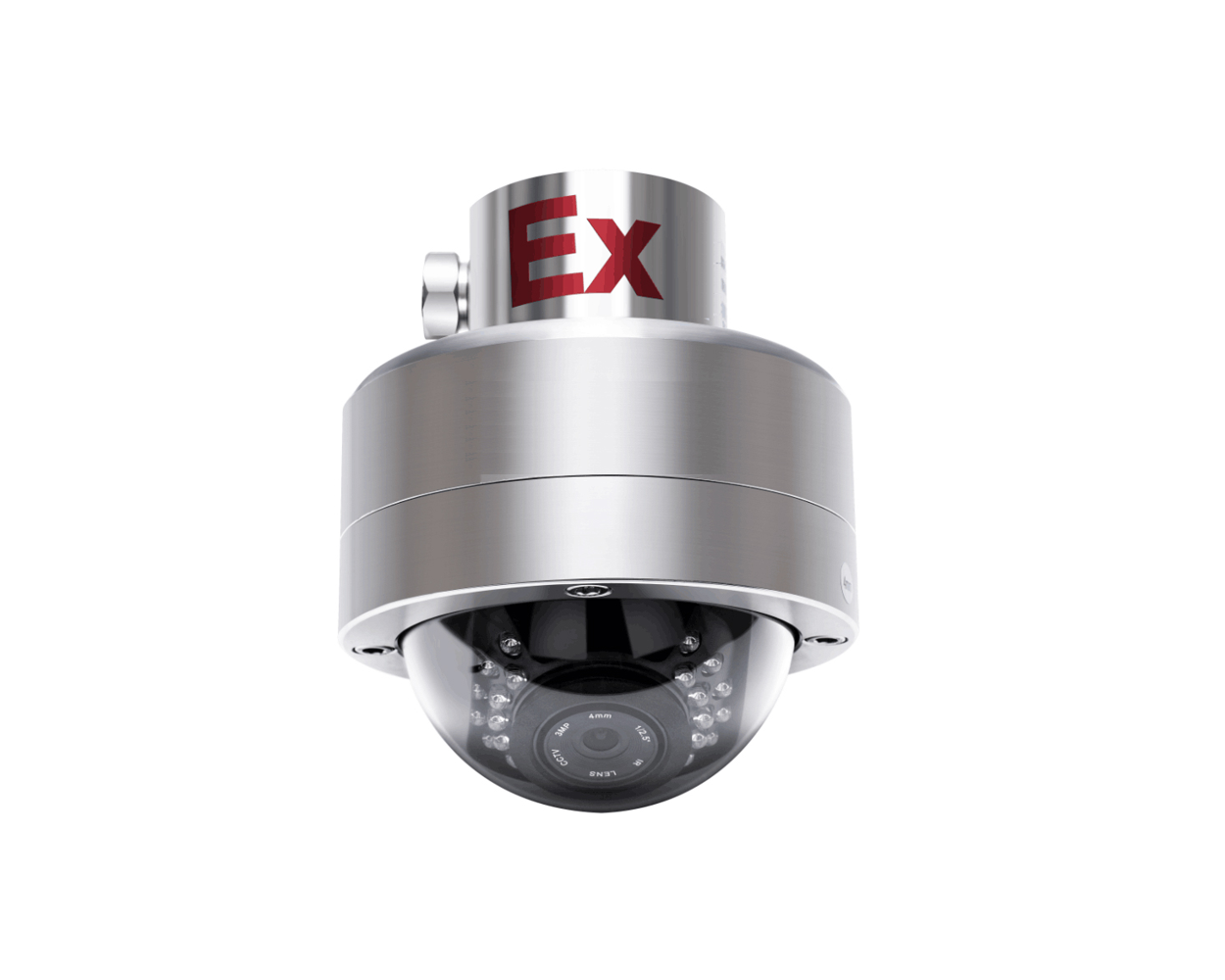

Explosion Proof CCTV Camera Kaixuan KX-EX2000PSB20 ZONE 1
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
Explosion Proof CCTV Camera Kaixuan KX-EX2000PSB20 ZONE 1
Explosion Proof CCTV Camera Kaixuan KX-EX2000PSB20 is certified to use in ATEX Zone 1 / 21 hazardous locations. It features 2.0 megapixels, fixed zoom, resolution up to 1920 x 1080 pixels, 4/6/8mm optional lens, Sony 1/3″CMOS imaging sensor CCD. Support ONVIF, support HIKVISION, DAHUA technology, support dual stream, mobile phone monitoring, support power over ethernet technology, polycarbonate transparent material bottom cover camera. The 304 stainless steel material applicable to strong corrosive environment. Powered by 220V AC/12V DC supply voltage. Explosion proof, anti-corrosion, waterproof resistant, IP66.
Explosion Proof CCTV Camera Kaixuan KX-EX2000PSB20 ZONE 1
Description
The Explosion Proof CCTV Camera Kaixuan KX-EX2000PSB20 is certified to use in ATEX Zone 1 / 21 hazardous locations. The EX-proof Speed Dome camera is 2.0 megapixels, fixed zoom with high resolution up to 1920 x 1080 pixels that provides best in class video quality and clarity. The heavy duty IP66, explosion proof, anti- corrosion, waterproof that applicable to strong corrosive environment. This Explosion Proof CCTV Camera is constructed using a highly rugged 304 stainless steel material (316L for optional).
It also offers additional usability with the support ONVIF, support HIKVISION and DAHUA technology. One of the many features of this CCTV camera is equipped with Sony 1/3″CMOS imaging sensor CCD, power over ethernet technology and glass surface process by nano technology. Powered by 220V AC/12V DC supply voltage.
View your camera anywhere in the world from a mobile device, 24 hours monitoring with the support of mobile phone monitoring and dual stream. It is also low power consumption and can work continuously for a long time.
Features:
- ATEX Zone 1 / 21
- 2.0 megapixels resolution
- Fixed Zoom Ratio
- Lens: 4 / 6 / 8mm for optional
- Support ONVIF, support HIKVISION, DAHUA
- Made of 304 stainless steel material (316L for optional), apply to strong corrosive environment
- Well design for Explosion-proof, anti-corrosion, waterproof , suitable for indoor and outdoor environment
- Adopt SONY 1/3″CMOS Senor CCD, resolution up to 1920×1080 pixel
- Adopt TI-DSP CPU. High work efficiency
- Support dual stream, support mobile phone monitoring
- Windows glass surface process by nano technology. Well light transmittance. no halation effect .non-stick oil/dusty
- Low power consumption, the fuselage internal air convection heat dissipation design, can work continuously for a long time
- Usual : AC220V / DC12V , other Power mode can be customized
- Support Power Over Ethernet technology
- Camera bottom cover adopt Polycarbonate transparent Material
- IP66
| Product | Ex-level | ATEX |
| II 2G Ex d IIC T6 Gb | ||
| II 2D Ex tb IIIC IP68 T80℃ Db | ||
| Ingress Protection level | IP66 | |
| Camera | Imaging sensor | SONY1/3″CMOS Senor CCD |
| Cpu | TI- DSP | |
| Minimal illumination | Color 0.1Lux@F1.1, BW 0.01 Lux@F1.1; | |
| Lens specification | 4mm、6mm、8mm Optional | |
| DNR | 3D –DNR | |
| Motion detecting | Support | |
| Compression standard | Video compression standard | H.264/MJPEG |
| H.264 encoding type | BaseLine Profile / Main Profile | |
| Compression output rate | 32 Kbps~8Mbps | |
| Image | Max imagin size | 1920×1080 |
| Frame rate | 2 megapixel and following 25 frame(full-time), support 1~25 fps is adjustable; | |
| Video output | Main:1920×1080,1600×1200,1280×1024,1280×960,1024×768,1280×720; | |
| Sub: 640×360,480×270,352×288,320×240,352×192,320×192,288×192,256×192; | ||
| Image setting | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser | |
| Net | Interface protocols | ONVIF,PSIA,CGI,ISAPI,GB28181 |
| Support protocols | RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ UPnP etc . | |
| Audio interface | Optional | |
| Alarm interface | Optional | |
| Other specifications | Temputure range | -40℃～60℃ |
| Relative humidity | ≤95%（+25°C） | |
| Atmospheric pressure | 80kpa～106 kpa | |
| Thermostat System | Optional | |
| Supply voltage | DC12V | |
| Suitable environment | Apply to explosive gas and combustible dust environment 00 | |
| Material | 304 stainless steel(316, 316L for optional) | |
| External dimensions | 157mm*157mm*130mm | |
| Inlet hole specifications |
