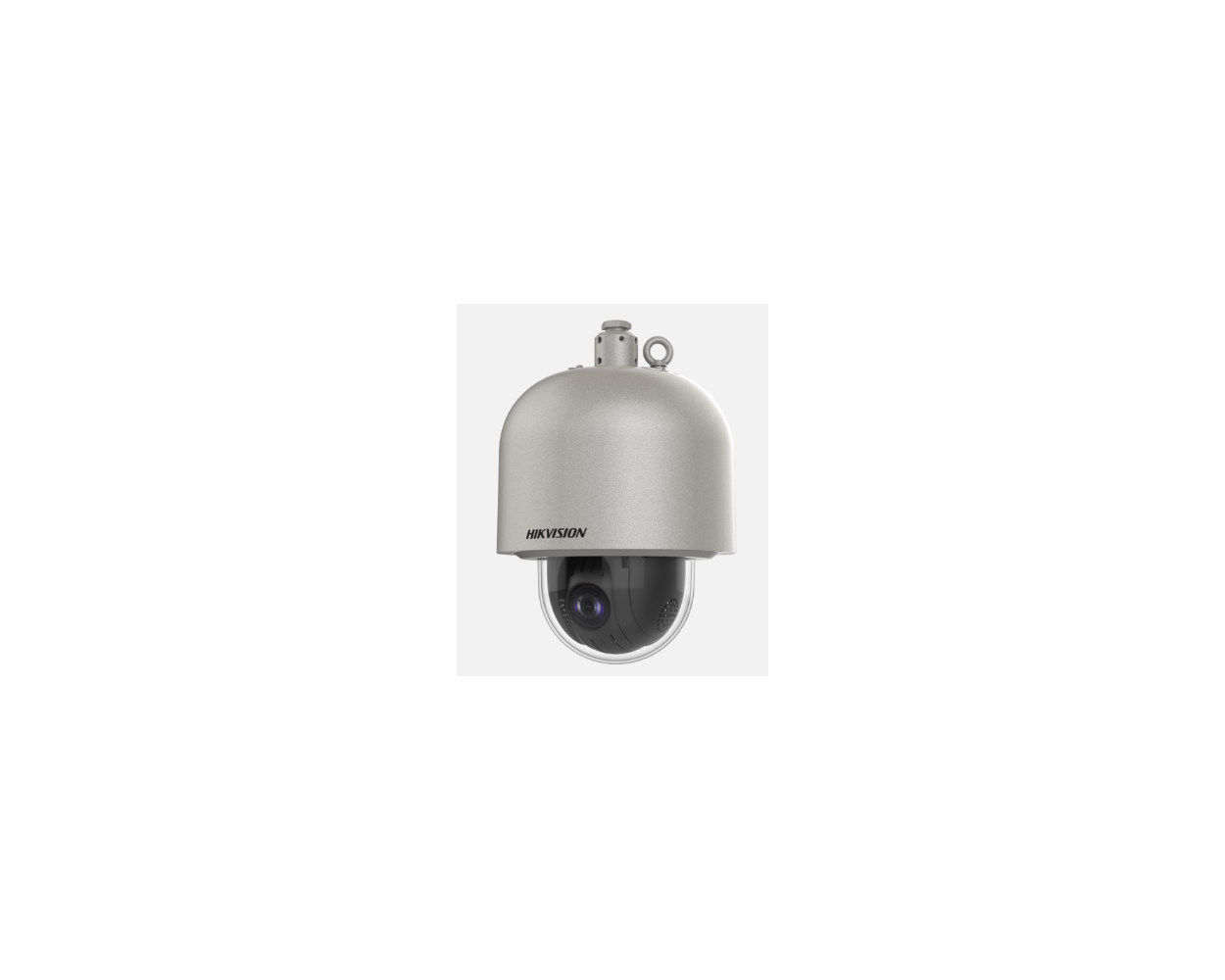

DS-2DF6231-CX(T5/316L) Explosion-proof Network Speed Dome

Call for Price
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
SKU
423265520

6-inch 32x Explosion-proof Network Speed Dome

  • High quality imaging with 2 MP resolution
  • 1/1.8" progressive scan CMOS
  • Min. illumination:Color: 0.0005 Lux @(F1.5, AGC ON) B/W: 0.0001 Lux @(F1.5, AGC ON)
  • 31× optical zoom, focal length 5.9 mm to 182.9 mm
  • Efficient H.265+/H.265 compression technology
  • Water and dust resistant (IP68)
  • 3D DNR and low bitrate technology delivers clean and sharp images
  • Clear imaging against strong back light due to 120 dB true WDR technology



        Camera

  • Image Sensor1/1.8" progressive scan CMOS
  • Min. Illumination

    Color: 0.0005 Lux @ (F1.5, AGC ON)

    B/W: 0.0001 Lux @ (F1.5, AGC ON)

  • Shutter Speed1/1 s to 1/30,000 s
  • Slow Shutteryes
  • Day & NightIR Cut Filter
  • Day/Night Switchauto
  • BLCyes
  • WDR120 dB
  • Focussemi-auto,manual,auto
  • HLCyes
  • 3D DNRyes
  • Defogyes
  • EISyes
  • Regional Exposureyes
  • Regional Focusyes
  • Image Settingssaturation;brightness;contrast;sharpness
  • Image Parameters Switchyes
  • White Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB;Locked WB
  • Digital Zoom16x
  • Optical Zoom31 ×
  • Privacy Maskup to 24 masks
  • SNR>52dB
  • General Functionmirror;password protection;watermark;IP address filter
  • Gain Controlauto;manual

          Lens

  • Focal Length5.9 mm to 182.9 mm, 31 × optical zoom
  • Zoom SpeedApprox. 5.6 s (Optical Lens, Wide-Tele)
  • FOV

    Horizontal field of view: 58.5° to 2.4° (wide-tele)

    Vertical field of view: 34° to 1.3° (wide-tele)

    Diagonal field of view: 65.8° to 2.7° (wide-tele)

  • ApertureF1.5

          PTZ

  • Movement Range (Pan)360° endless
  • Movement Range (Tilt)From 0° to 90° (Auto Flip)
  • Pan SpeedConfigurable, from 0.1°/s to 300°/s, preset speed: 540°/s
  • Tilt SpeedConfigurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s
  • Proportional Zoomyes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-Off Memoryyes
  • Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • 3D Positioningyes
  • PTZ Status Displayyes
  • Preset Freezingyes
  • Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
  • Exception DetectionIP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot

          Video

  • Max. Resolution1920 × 1080
  • Stream Typemain stream;sub-stream;third stream
  • Main Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);

    60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720);

  • Sub-Stream

    50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

    60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

  • Third Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

    60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

  • Video Bit Rate32 kbps to 16384 kbps
  • H.264 Typebaseline profile;main profile;high profile
  • H.265 Typemain profile
  • H.264+yes
  • H.265+yes
  • SVCyes
  • ROIyes

          Audio

  • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • Audio Bit RateG.722.1: 16Kbps,G.711ulaw: 64Kbps, G.711alaw: 64Kbps,MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps;
  • Audio Sampling RateMP2L2: 16kHz, 32kHz, 48kHz,PCM: 8kHz, 16kHz,32kHz, 48kHz
  • Environment Noise Filteringyes

          Smart Features

  • Basic Eventmotion detection;video tampering alarm;alarm input;alarm output;exception
  • Smart Eventintrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
  • Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
  • Smart EncodingH.265+;H.264+;low bit rate;ROI;SVC
  • Smart Trackingmanual tracking,event tracking
  • Smart RecordANR, Dual-VCA

          Network

  • Network StorageNAS (NFS, SMB/ CIFS);ANR
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • APIOpen-ended API;Open Network Video Interface; ISAPI;Hikvision SDK;Third-party management platform
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. 3 levels: Administrator, Operator and User
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
  • Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

          Interface

  • On-Board Storagesupport microSD/microSDHC/microSDXC cards, up to 256 GB
  • RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
  • Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
  • Alarm Input7 alarm inputs
  • Alarm Output2 alarm output
  • Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
  • Audio Output1 audio output, line level, impedance: 600 Ω

          Deep Learning Function

  • Face Capture

    1. Detects up to 10 faces simultaneously

    2. Uploads face with background and closed-up face pictures

    3. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face

          General

  • DimensionsΦ 281 mm × 405 mm(Φ 11" × 15.9")
  • Power100 VAC to 240 VAC, Max.: 60 W
  • Operating ConditionsTemperature: -40°C to 60°C (-40°F to 140°F),Humidity: ≤ 95%
  • MaterialSUS316L with anti-corrosion surface spray treatment
  • 22 kg (48.52 lb.)
  • Ex-MarkATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db; IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db

          Approval

  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • ProtectionIP68, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
