Portable dew-point meter SADPmini2-EX
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
DESCRIPTION

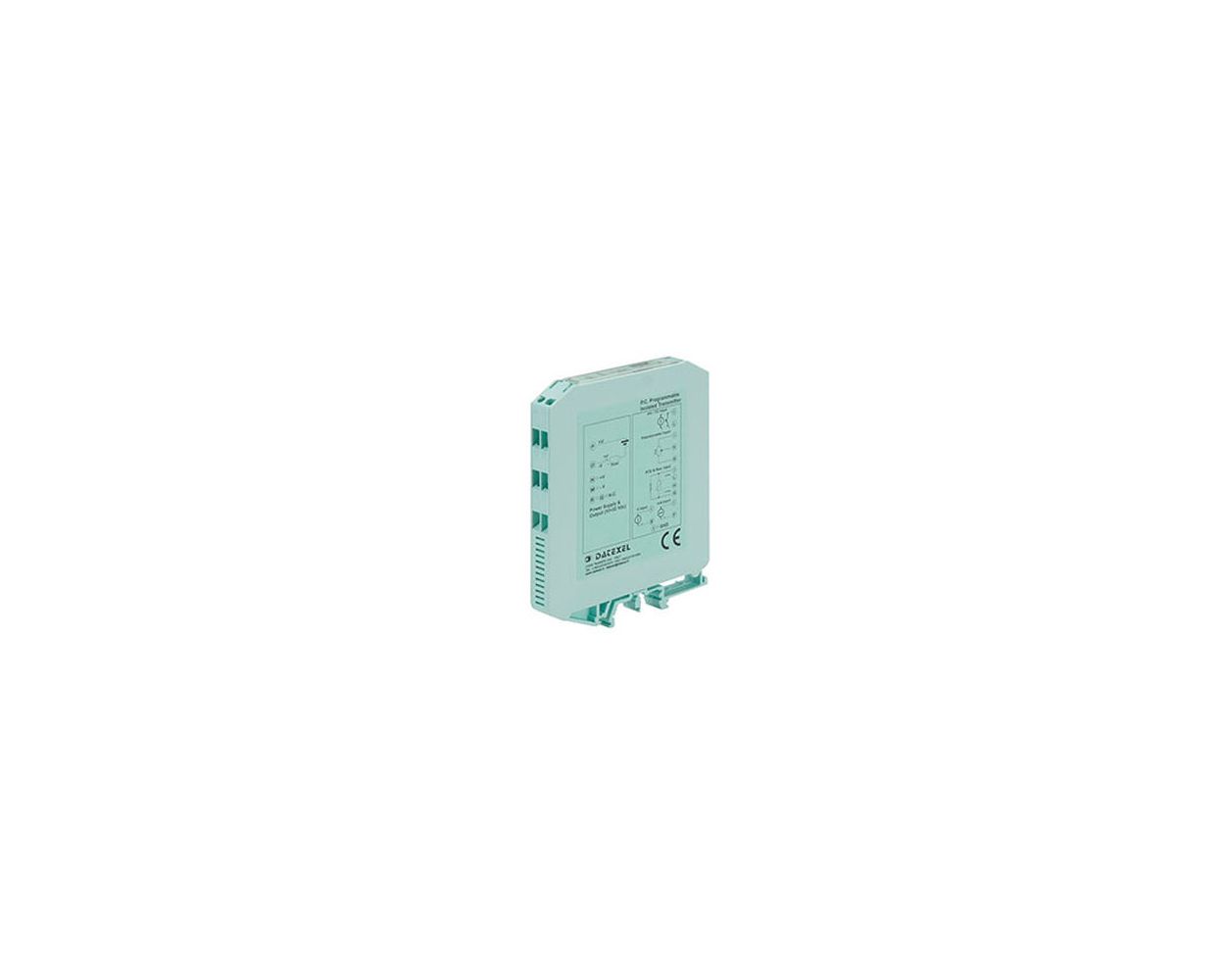

The isolated transmitter DAT 2015 IS is able to execute many functions such as : measure and linearisation of the temperature characteristic of RTDs sensors,
conversion of a linear resistance variation, conversion of a voltage signal even coming from a potentiometer connected on its input. Moreover the DAT 2015 IS
is able to measure and linearise the standard thermocouples with internal cold junction compensation. The measured values are converted in a 4÷20 mA current signal .
The programming of the DAT 2015 IS is made by a Personal Computer using the software PROSOFT. For Resistance and RTDs sensors it is possible to program the cable compensation with 3 or 4 wires; for Thermocouples it is possible to
program the Cold Junction Compensation ( CJC ) as internal or external.
It is possible to set the minimum and maximum values of input and output ranges in any point of the scale, keeping the minimum span shown in the table below.
Moreover it is available the option of alarm for signal interruption (burn-out) that allows to set the output value as high or low out of scale .
It is housed in a plastic enclosure of 12.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.
CHARACTERISTICS
Mounting |
DIN rail mount |
Output signal |
analog |
Other characteristics |
explosion-proof |
Applications |
process |
Downloads
DIN rail mount temperature transmitter DAT2015-IS
