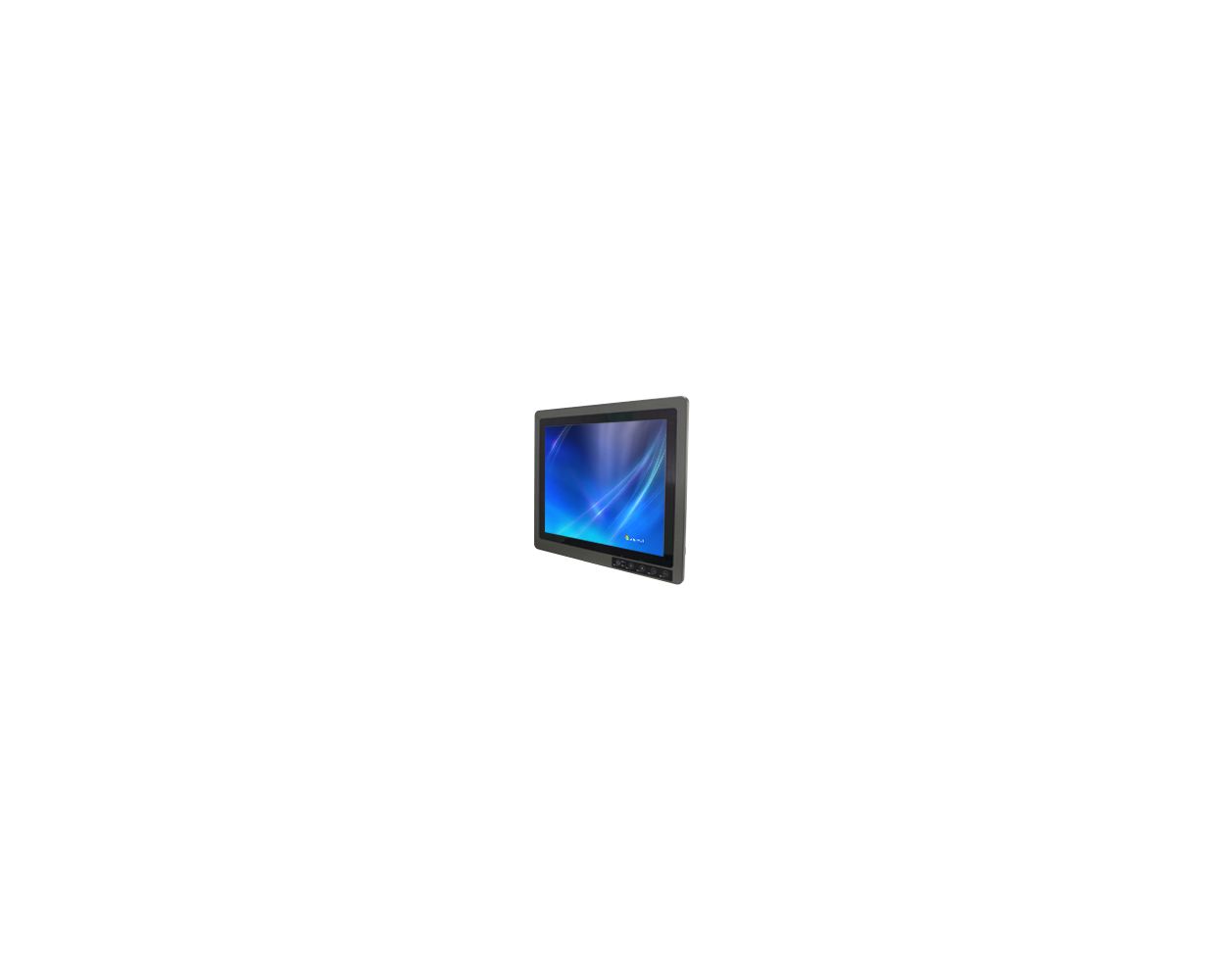

R19IHAT-66EX

Call for Price
^*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.

SKU

876585678555

Features:

Class 1, Division 2 & ATEX Zone 2 certified for hazardous area applications Note: Available now
High performance / low power Intel Haswell Core i7-4650U
19-inch 600 nits LCD panel / Optional 1000 nits sunlight readable panel
Fanless, streamlined enclosure for highly efficient heat dissipation
Touch screen control button to enable/disable touch screen interface
Front control membrane keys Lockable by software
Intelligent Heater for working in extreme cold environments -40°C
Optional WLAN
Optional Optical Bonding

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

ATEX Mobile Sample Ruggedshop

LCD Panel Specification

Panel_Size	19"
Active Display Area	376.32(H) x 301.06(V)
Pixel Pitch	0.294(H) x 0.294(V)
Panel_Display Resolution	1280 x 1024
Panel_Contrast Ratio	1000:1
Display Color	16.7M
Panel_Brightness	600(typ.)
Panel_Viewing Angle	-85~85(H);-80~80(V)
Recommend Resolution	1280 x 1024
Touch_SensorType	Projected Capacitive
Resolution	1280 x 1024

System Specification

Processor	Intel Core i7-4650U max. 3.3GHz
Chipset	Intel® HD graphics 5000
Memory	1 x DDR3L SO-DIMM 1600 MHz , default 4GB
BIOS	AMI BIOS
Storage	mSATA SSD (default 128GB, max. 256GB)
OS	Windows Embedded Standard 7(optional) Windows 7 PRO for Embedded System (optional) Windows Embedded 8 Standard (optional) Windows Embedded 8.1 Industrial(optional) Windows 10 IoT Enterprise
Net Weight (kg) (without touch)	13.5 Kg
Gross Weight(kg)(single pcking)	13 Kg

I/O Connectors

Back Panel I/O Port	2 x Ex-Type Brass Cable Gland M16 (Cable range 7.5~10.2mm) 3 x Ex-Type Brass Cable Gland M12 (Cable range 5.4~8mm)
Internal I/O pin-header	1 x USB 2.0 terminal block 1 x LAN terminal block 1 x RS232/422/485 terminal block 1 x 9~36V DC input terminal block 1 x USB 3.0 2 x USB 2.0 (female type) 1 x RJ45 LAN 1 x RS232/422/485 (DB9) 1 x VGA (DB15)

Mechanical and Environment

Operating Temperature	-40˚C to +70˚C (with intelligent heater)
Operating Humidity	5 to 95% (non-condensing)
Certifications	Ordinary Location Safety: UL 60950-1 CSA C22.2 No. 60950-1-07 EN 60950-1 Hazardous Location Safety: Class I, Div.2, Groups A,B,C,D T4 Meet Standards: ANSI/ISA-12.12.01-2013 CSA Std. C22.2 No. 213-M1987 ATEX II 3G Ex nA ic IIC T4 Gc Note: Available now Meet Standards: EN 60079-0, EN 60079-11, EN 60079-15 IECEx Ex nA ic llC T4 Gc Note: Available now Meet Standards: IEC 60079-0, IEC 60079-11, IEC 60079-15 CE, FCC Shock: MIL-STD-810G Method 516.6 Drop: MIL-STD-810G Method 516.6 Vibration: MIL-STD-810G Method 514.6
Cooling System	Fanless design
Dimension (W x H x D)	474 x 410 x 111 mm
IP Proof	IP66 Meet Standard IEC60529 (for Non-Hazardous location) IP54 Meet Standard IEC60079 (for Hazardous location)

Power

Power Input	9~36V DC input (isolation)

*The weight information is for reference purpose.The actual weight will vary according to then options you choose,for example,the touch/glass option.
