POLARIS II REMOTE HMI 19.1" - Zone 2/21
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.

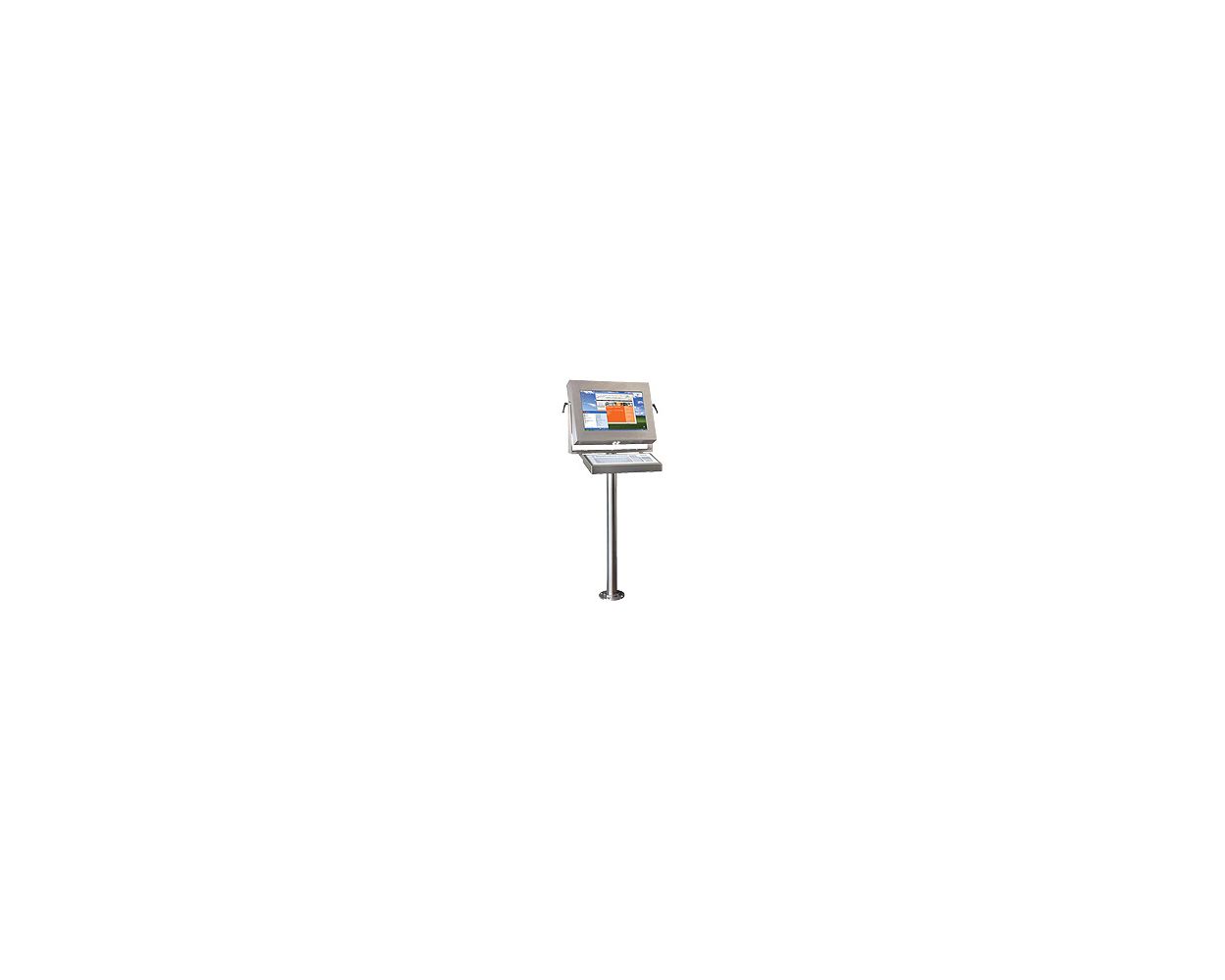

The POLARIS II Remote 19.1" from BARTEC is a display which enables a PC to be operated in safe areas of hazardous areas. Distances of up to 300 m are possible. POLARIS II Remote 19.1" allows the user the possibility of utilising any currently available PC-based process control systems without restrictions in the Ex areas.
POLARIS II REMOTE HMI 19.1" - Zone 2/21
DESCRIPTION
The POLARIS II Remote 19.1" from BARTEC is a display which enables a PC to be operated in safe areas of hazardous areas. Distances of up to 300 m are possible. POLARIS II Remote 19.1" allows the user the possibility of utilising any currently available PC-based process control systems without restrictions in the Ex areas. The devices are also available for wall, floor or table mounting for optimum use. The screen on the POLARIS II Remote 19.1" is a TFT display with SXGA resolution and is characterised by its outstanding brilliance and a very large reading angle. A keyboard with integrated trackball or touchpad is available. The optional (intrinsically safe) touchscreen offers the ultimate in operating comfort. Linking in the safe area is established through a local unit (included in the scope of delivery).
FEATURES
- In the stainless enclosure tiltable
- Graphics-capable TFT colour display
- Simple wiring
- Connection of standard PCs in non-hazardous areas
- Optional touchscreen
- Transmission through fibre optical waveguide or copper
- Cost reduction by cascading several POLARIS II Remote devices to one PC
TECHNICAL DATA
| Protection class | IP 65 |
| Structure | Stainless-steel enclosure |
| Dimensions | 610 mm x 450 mm x approx. 100 mm |
| Material | Stainless steel |
| Cable length | up to 300 m through STP cable VGA/PS2 up to 130 m through STP cable DVI/USB up to 500 m through multi-mode optical fibre cable DVI/USB up to 20 km through single-mode optical fibre cable DVI/USB |
| Storage temperature | -25 °C to +60 °C |
| Humidity | 5 to 95 % non-condensing |
| Weight | approx. 17 kg |
| Display | 19.1" graphics-capable TFT colour display 16.7 million colours SXGA resolution, 1280 x of 1024 pixels Brightness 300 cd/m² Visible surface approx. 376 x 301 mm Contrast 1300:1 Option of touchscreen (resistive) |
| Backlighting | CFL technology Service life approx. 50,000 hours (at +25 °C) |
| Voltage | AC 110 bis 230 V, 47 to 63 Hz DC 24 V |
| Input voltage | AC 90 to 253 V DC 24 V ± 10 % |
| Power | Pmax. < 75 W |
ACCESSORIES
| Accessory | Price | Datasheet |
| Keyboard | Call For Price |  Datasheet.pdf |
| Enclosure for Mouse and Keyboard | Call For Price | Datasheet.pdf |
| Mouse | Call For Price | Datasheet.pdf |
| Trackball, Joystick | Call For Price | Datasheet.pdf |
| Touchpad | Call For Price | Datasheet.pdf |
| Connection Cable for Keyboard and Mouse | Call For Price | Datasheet.pdf |
| Reinforcement Frame | Call For Price | Datasheet.pdf |
| Mounting Clamps Set | Call For Price | Datasheet.pdf |
| LAN STP Cable | Call For Price | Datasheet.pdf |
| Power Pack for Local Unit | Call For Price | Datasheet.pdf |
| 19" Rack Mounting for Local Unit | Call For Price | Datasheet.pdf |
| USB to PS/2 Converter | Call For Price | Datasheet.pdf |
| Local Unit/STP Cable Black Box Brand | Call For Price | Datasheet.pdf |
| Local Unit/STP Cable IHSE Brand | Call For Price | Datasheet.pdf |
| KVM Cable | Call For Price | Datasheet.pdf |
| Standard Stainless Steel Enclosure with Adapter Connection without Stand | Call For Price | Datasheet.pdf |
| Exclusive II Stainless Steel Enclosure with Adapter Connection | Call For Price | Datasheet.pdf |
| Stainless Steel Enclosure - Swivel/Tilt without Desktop Mount | Call For Price | Datasheet.pdf |
| Desk Mounting for Enclosure 15"/19.1" Series | Call For Price | Datasheet.pdf |
| Support Arm for Wall Mounting | Call For Price | Datasheet.pdf |
| Stand for Floor Mounting for Exclusive II Stainless Steel Enclosure | Call For Price | Datasheet.pdf |
| Standard Stainless Steel Enclosure with Additional Fitted Components | Call For Price | Datasheet.pdf |
APPROVALS
ATEX:
II 3G Ex nA ic IIC T5 Gc
-25 °C ≤ Ta ≤ +50 °C II 2D Ex ib tb IIIC T100 °C Db
DOWNLOADS
PRICES
| Distance up to 100 m via STP cable DVI/USB | 17-72V5-6100/0000 | € 6.281,50 |
| Distance up to 300 m via STP cable VGA/USB | 17-72V5-6104/0000 | € 6.750,00 |
| Distance up to 500 m fiber optic multi mode DVI/USB | 17-72V5-6105/0000 | € 6.750,00 |
| Distance up to 20 km fiber optic single mode DVI/USB | 17-72V5-6106/0000 | € 6.950,00 |
