SamCon ExCam SUFA1080



ATEX, IECEx certified. Group II (Gas and Dust) for zone 1, 2 as well as 21, 22

The ExCam SUFA1080 is a thermal sensor unit for use in hazardous areas – offering all advantages of thermal detection. The ExCam SUFA1080 is part of a modular Ex-Network-Camera. It should be used together with a seperately sold main unit. The ExCam series is certified according to European regulations (ATEX) as well as international ones (IECEx). These certificates and further documents can be found in the download area.

Features

• Certification for Hazardous Areas (ATEX & IECEx)
• Ultra-Compact and Light
• Thermal Technology for Low False Alarm Rate
• Single-Cable-Solution
• Protection level of IP68/IP66 (IEC 60529)
• Resolution thermal: 208x156

Explosion-proof thermal sensor unit with ATEX and IECEx-certification

Besides the European regulations (ATEX), the ExCam series is also certified according to international regulations (IECEx). The housings’ certification comprises ATEX group II (Gas and Dust) for zone 1, 2 as well as 21 and 22 including the explosion groups IIC / IIIC with a high risk of mechanical threat.

During the ExCam SUFA1080’s development stage the focus was clearly laid on security aspects as well as mechanical precision and high-quality stainless steels. In addition, the modular design of the housing components prior to the camera’s development allows a free combination of the individual housing components such as different flanges in combination with the housing body - without any limitations regarding explosion protection.

Various Applications

Ex-proof thermal cameras can be used for various applications in electronic, aerospace industrie, mechanical- and chemical industries, completely independant from lightning conditions. In security services a thermal camera can optimally complete a visual camera.

Reliable Thermal Images

The ExCam SUFA1080 delivers a reliable detection any time of day and night. It sees even in complete darkness! It is ideally suitable for monitoring the temperature of large surfaces because it doesn`t control the temperature punctually but in the whole recording area. The camera recognises immediatly a rise in temperature. Even moving and difficult to access objects are no problem for the ExCam SUFA1080. It can detect persons and vehicles without beeing in conflict with privacy. It decreases false alarms. The allowed ambient temperature range of the ExCam SUFA1080 starts at -30°C and goes up to +60°C.

Ultra-compact housing - thermal resolution

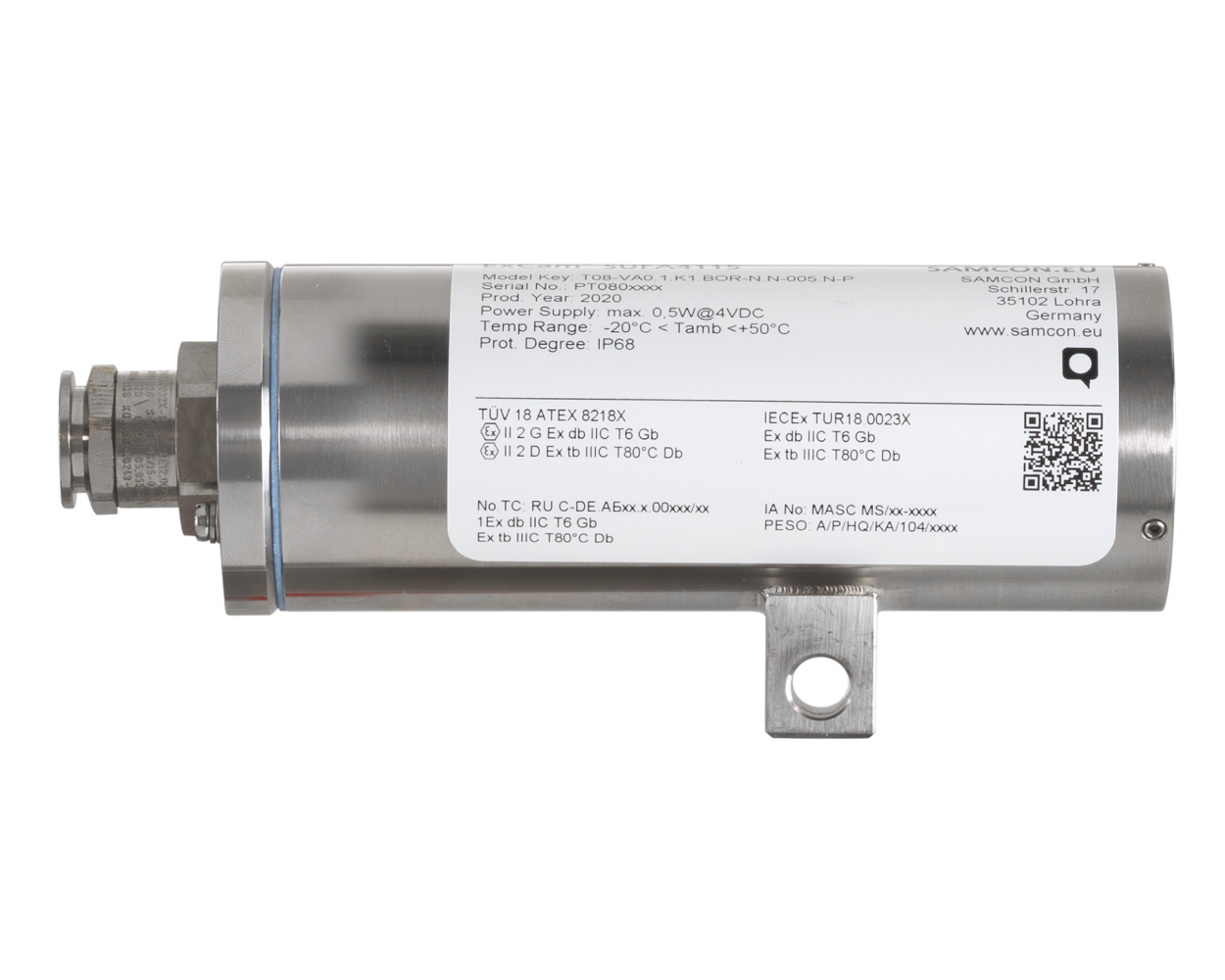

With its length of just 127 mm and a diameter of only 48 mm, the Sensor Unit ExCam SUFA1080 is as small that you can mount it everywhere. Thanks to the microbolometer the ExCam SUFA1080 can deliver thermal images of moving objects.

Distance Range for Thermography

Media resistance and seals

Due to the high-quality materials used for the T07 Series, it is resistant against a lot of media. The particularly designed GYLON (PTFE) flat sealing does not only ensure the housing to be watertight (IP68) but also supports the resistance towards several chemicals. The extremely robust and scratch-proof as well as high-impact resistant germanium glass fits perfectly into the high-quality materials of the housing body..
