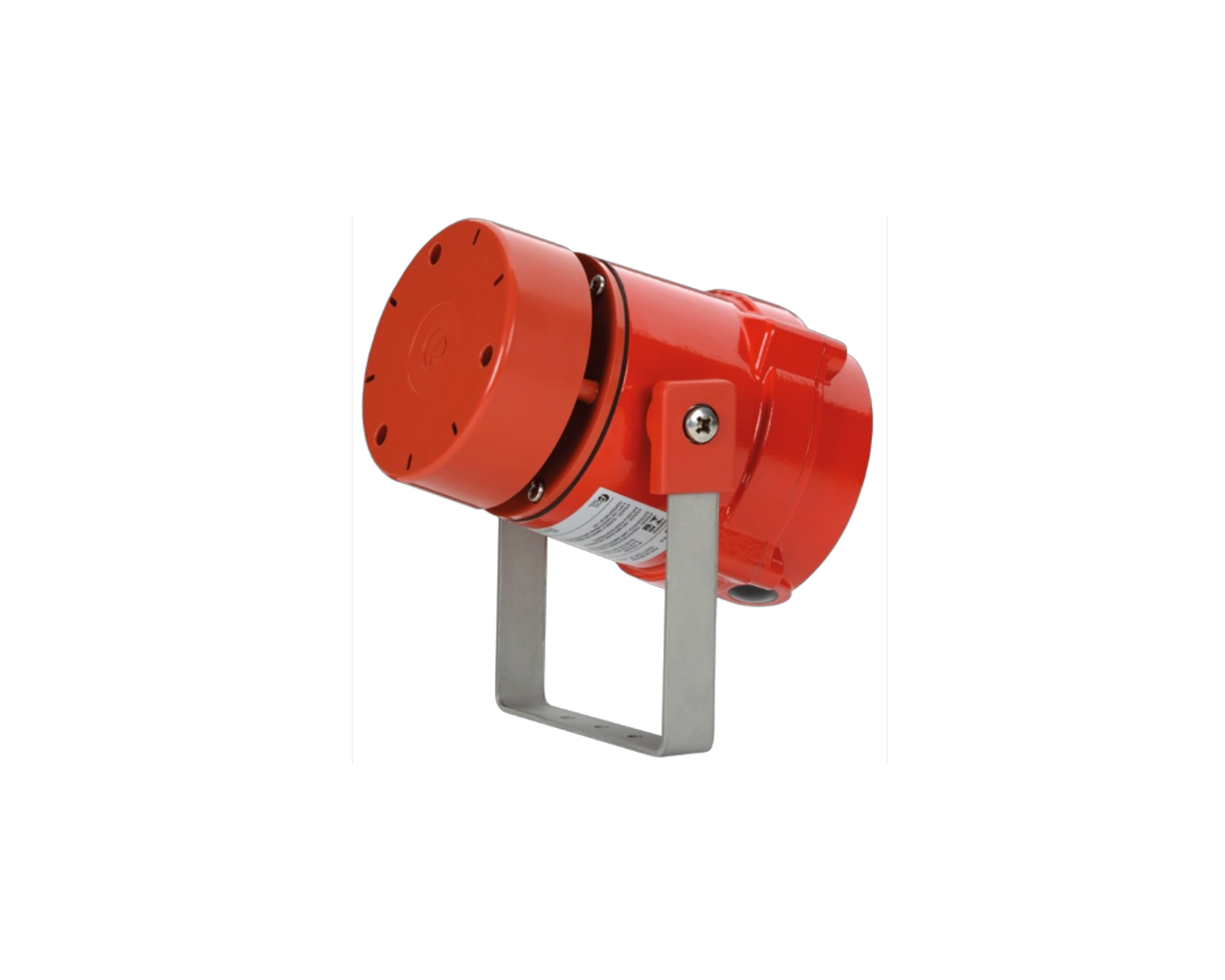

BExS110 Ex d Alarm Horn - Radial Omni-directional

Call for Price
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
SKU
42326106

BExS110 Ex d Alarm Horn - Radial Omni-directional

The BExS110-R is an alarm sounder featuring a radial omni-directional horn that disperses the
alarm tones radially. Ideal for applications requiring a compact audible signalling solution.
The BEx explosion proof Ex d range features enclosures manufactured from corrosion proof,
marine grade copper free LM6 aluminium with chromate and powder coat finish.

BExS110 Ex d Alarm Horn - Radial Omni-directional

The flameproof BExS110 alarm sounders are suitable for Zone 1, 2, 21 & 22
applications. Approved to IECEx, ATEX, Ex EAC and INMETRO standards.
The BExS110-R is an alarm sounder featuring a radial omni-directional horn that disperses the
alarm tones radially. Ideal for applications requiring a compact audible signalling solution.
The BEx explosion proof Ex d range features enclosures manufactured from corrosion proof,
marine grade copper free LM6 aluminium with chromate and powder coat finish.

SPECIFICATION
Maximum output: 117dB(A) @ 1 metre [108dB(A) @ 10ft/3m]
Nominal output: 110dB(A) @ 1m +/- 3dB – Tone 2 [101dB(A) @ 10ft/3m]
No. of tones: 32 (UKOOA / PFEER compliant)
No. of stages: 3
Volume control:

Max. 110dB(A);
Min. 72dB(A) – Tone 2

Effective range: 100m/328ft @ 1KHz
Voltages DC: 12vdc; 24vdc; 48vdc
Voltages AC: 115vac; 230vac
Stage switching: Negative or positive
Ingress protection: IP66/67
Enclosure matl: Marine grade copper free LM6 Aluminium
Enclosure finish: Chromate & powder coated finish – anti-corrosion.
Colour:

RAL3000 Red
Grey RAL7038
Special – available on request

BExS110 horn: High impact UL94 V0 & 5VA FR ABS
Cable entries: Dual M20 ISO (one stopping plug inc)
Terminals: 0.5 – 2.5mm2 (20-14 AWG)
Enclosure volume: <2 litres
Line monitoring:

Blocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted

Relative humidity:

95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist

Weight: DC: 3.00kg/6.6Ibs AC: 3.20kg/7.04Ibs
Option P1:

Stage programmable – 4 remotely selectable stages
45 alarm tones – any tone can be assigned to any
stage
User configurable continuous frequency tone

Option T1: Tropicalised version



Downloads

 Datasheet.pdf
