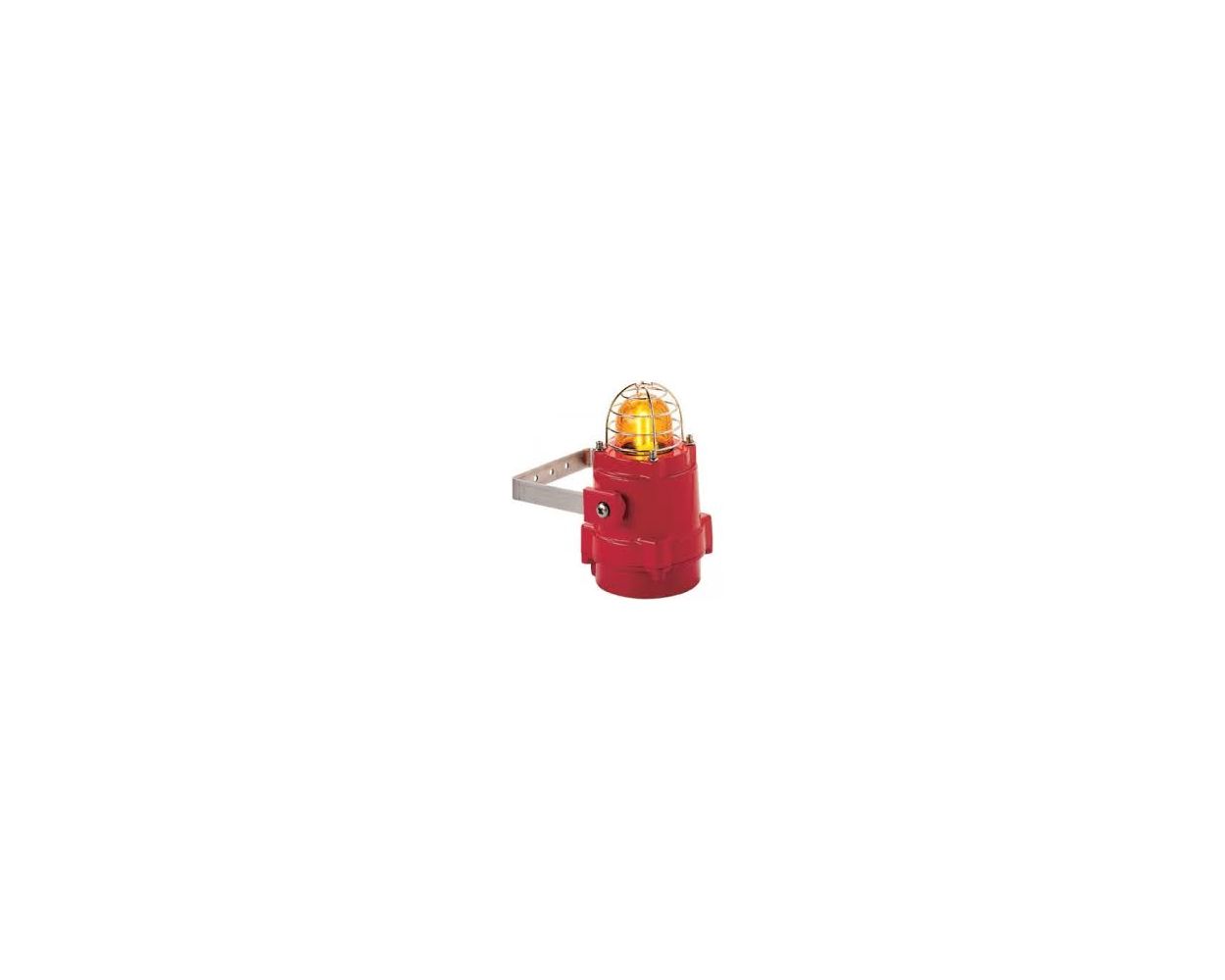

BExBG05 Explosion proof 5J Xenon Beacon
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
Product type: BExBG05 Explosion proof 5J Xenon Beacon
Type: DP - Ex d, UV stable PC Colour Lens
Voltage: DC024 – 24V dc
Cable Entry Type: A – 2xM20x1.5mm
Adaptor/Stopping plug material: B – Brass
Bracket/guard matl: 2 - A4 316 Stainless Steel
Product version: A1 - Default - IECEx, ATEX, Ex EAC & INMETRO
Enclosure colour: R – Red RAL 3000
Lens colour: A - Amber
Flash rate: 1Hz (60 fpm)
Product type: BExBG05 Explosion proof 5J Xenon Beacon
Type: DP - Ex d, UV stable PC Colour Lens
Voltage: DC024 – 24V dc
Cable Entry Type: A – 2xM20x1.5mm
Adaptor/Stopping plug material: B – Brass
Bracket/guard matl: 2 - A4 316 Stainless Steel
Product version: A1 - Default - IECEx, ATEX, Ex EAC & INMETRO
Enclosure colour: R – Red RAL 3000
Lens colour: A - Amber
Flash rate: 1Hz (60 fpm)
Leveranciersnummer: BExBG05DPDC024AB2A1R/A
Bestelnummer: 26BExBG05DPDC024AB2A1R/A
| Energy: | 5 Joules (5Ws) |
| Flash rate: | 1Hz (60 fpm) |
| Peak Candela: | 500,000 cd – calculated from energy (J) |
| Eff. Intensity cd: | 250 cd – calculated from energy (J) |
| Peak Candela: | 39,463 cd* – measured ref. to I.E.S. |
| Eff. Intensity cd: | 120 cd* – measured ref. to I.E.S. |
| Lens colours: | Amber, Blue, Clear, Green, Red & Yellow |
| Voltages DC: | 12vdc; 24vdc; 48vdc |
| Voltages AC: | 115vac; 230vac |
| Ingress protection: | BG05D : IP66/67 BG05E : IP66 |
| Enclosure matl: | Marine grade copper free LM6 Aluminium |
| Enclosure finish: | Chromate & powder coated finish – anti-corrosion. |
| Colour: | Red (others available on request) |
| Cable entries: | Dual M20 ISO (one stopping plug inc) |
| Terminals: | 0.5 – 2.5mm² (20-14 AWG) |
| Enclosure volume: | <2 litres |
| Line monitoring: | Blocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted |
| Grounding stud: | M5 |
| Temperature range: | -50° to +70°C (-58°F to +158°F) |
| Relative humidity: | 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist |
| Tube life : | Emissions are reduced to 70% after 5 million flashes |
| Weight : | DC: 2.45kg/5.39Ibs AC: 2.75kg/6.05Ibs |
| *All candela data is representative of performance with clear lens at optimum voltage. | |
Downloads
1-21-110-bexbg05_datasheet.pdf
