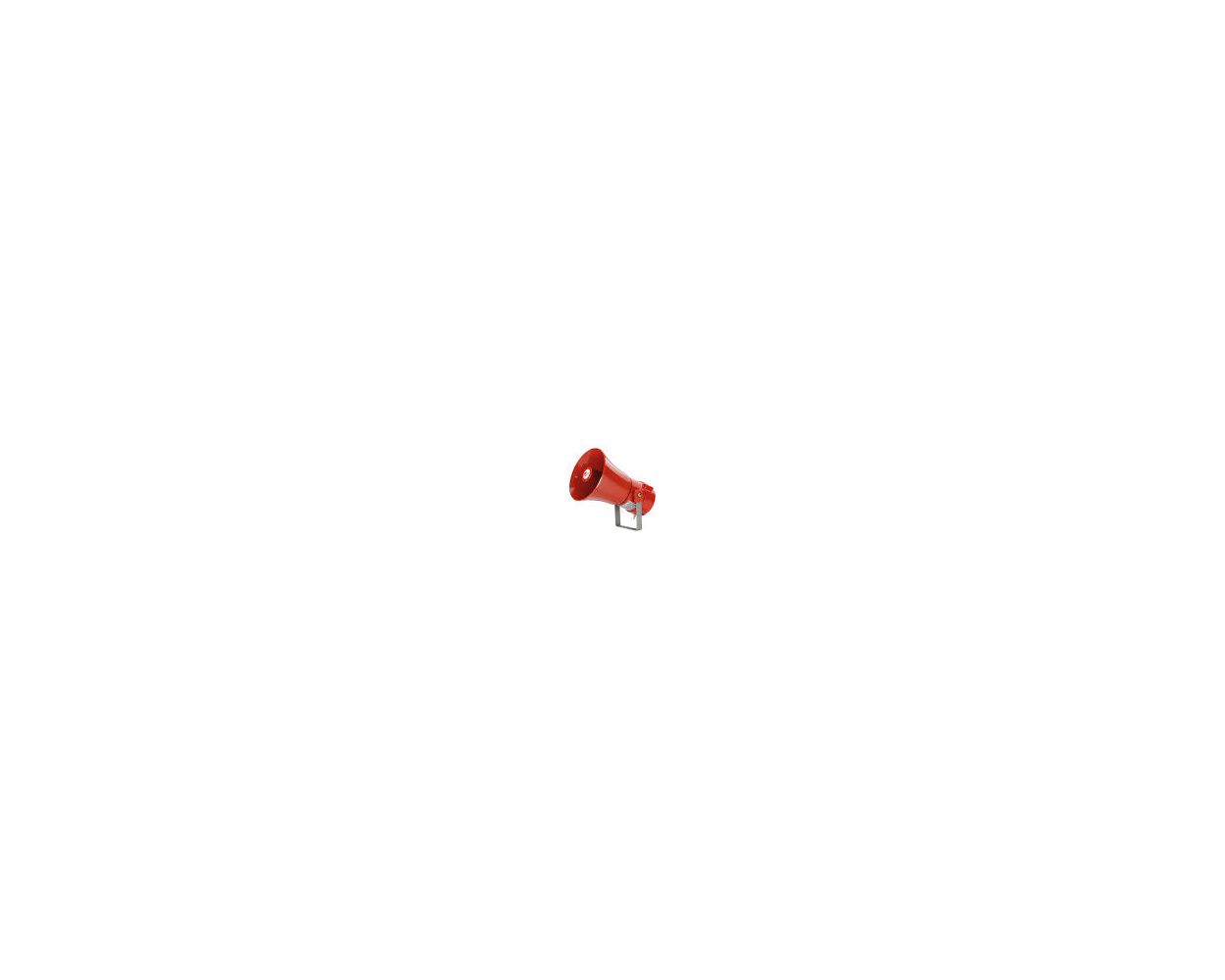

Bex BExS120D 24V+/-25% dc Ex D Flare horn
Call for Price
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
SKU
Bex BExS120D 24V+/-25% dc Ex D Flare horn
BExS120D 24V+/-25% dc Ex D Flare horn
Output:117dB
No of tones:45
No of stages: 4
Ingress Protection: IP/6667
Entries: 2x M20 with Brass stopping plug
Bracket: A2 304 stainless steel
Enclosure color: RED RAL3000
Certificate:ATEX/IECEx/Ex EAC & INMETRO
Leveranciersnummer: BExS120DFDC024AB2A1R
Bestelnummer: 26BExS120DFDC024AB2A1R
Specification
| Maximum output: | 123dB(A) @ 1 metre [114dB(A) @ 10ft/3m] |
| Nominal output: | 117dB(A) @ 1m +/- 3dB – Tone 2 [108dB(A) @ 10ft/3m] |
| No. of tones: | 32 (UKOOA / PFEER compliant) |
| No. of stages: | 3 |
| Volume control: | Max. 117dB(A); Min. 108dB(A) – Tone 2 |
| Effective range: | 200m/656ft @ 1KHz |
| Voltages DC: | 12Vdc; 24Vdc; 48Vdc |
| Voltages AC: | 115Vac; 230Vac |
| Stage switching: | Negative or positive |
| Ingress protection: | IP66/67 |
| Enclosure matl: | Marine grade copper free LM6 Aluminium |
| Enclosure finish: | Chromate & powder coated finish – anti-corrosion. |
| Colour: | Red or Special – available on request |
| BExS120 horn: | High impact UL94 V0 & 5VA FR ABS |
| Cable entries: | Dual M20 ISO (one stopping plug inc) |
| Terminals: | 0.5 – 2.5mm² (20-14 AWG) |
| Line monitoring: | Min. 500 Ohm 2w, or 3k3 Ohm 0.5w res. or diode within Exd enclosure (dc versions) |
| Relative humidity: | 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist |
| MTBF DC: | 173.75 years / 1,522,071 hours – MIL 217 |
| MTBF AC: | 170.13 years / 1,490,212 hours – MIL 217 |
| Weight: | DC: 3.20kg/7.04Ibs AC: 3.40kg/7.48Ibs |
| Version A1: | SIL1 and SIL2 Route 2H |
| Version P1: | Stage programmable – 4 remotely selectable stages 45 alarm tones – any tone can be assigned to any stage. User configurable continuous frequency tone SIL1 and SIL2 Route 2H |
| Version T1: | Tropicalised SIL1 and SIL2 Route 2H |
| *SPL data +/-3dB(A). Measured at optimum voltage. | |
Downloads
1-22-050-bexs120-f_datasheet.pdf
