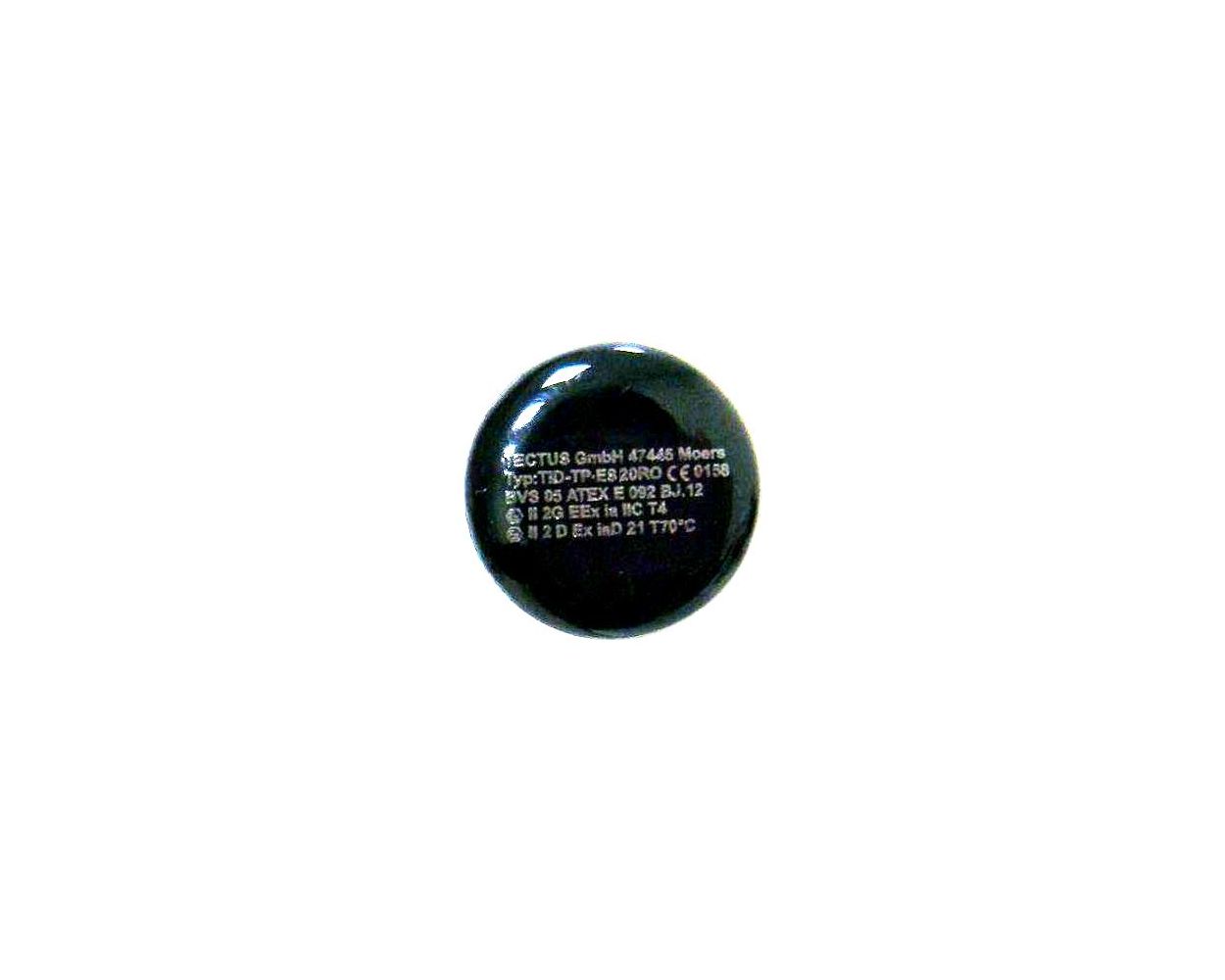

ATEX Zone 1 - 21 certified 20 mm EPOXY Transponder with Adhesive LF or HF

Call for Price
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
SKU
5553333
SAP Item ID
5553333

Features Robust Housing Easy mounting by adhesive on back Good read range

ATEX Zone 1 / 21 certified 20 mm EPOXY Transponder with Adhesive LF or HF

ATEX Zone 1 / 21 certified 20 mm EPOXY Transponder LF or HF are used by system integrators or end users to affix these on serial number plates and euipment directly. In cooperation with ATEX certified mobile handheld PDAs inspections and asset management applications become more effective by saving time and cost by sending the operation data directly via WiFi or WWAN to the host computer.

Features

Robust Housing
Easy mounting by adhesive on back
Good read range


Specifications:

IC Type:
EM4200
LF 125 kHz
(+/- 5 %) ISO: De-Facto Standard Read Range:
200 mm
Read Write version and with HF ICs available
Thickness:
3,0mm
Diameter:
20,0mm
Weight:
3,0g
Colors:
Black
Material:
Epoxy, Plastic
Operation Temp.
-45°C ... 60°C
Storage Temp.
-45°C ... 60°C
MOQ:
1 000
EX Certificates:
ATEX Zone 1 / 21
EX Marking:
II 2G EEx ia IIC T4
II 2D Ex ia D 21 T70°C
Chemical Resistance:
Unleaded gasoline, Mineral- and Vegetable Oil, Petroleum, Saltwater
IP Class:
IP67
Compliance:
CE, RoHS
Part Names:
TID-TP-ES-20RO



*Prices as shown on this store are indicational and subject to 21% tax,
currency changes and shipping costs. For an accurate and special price please call or e-mail our support.
