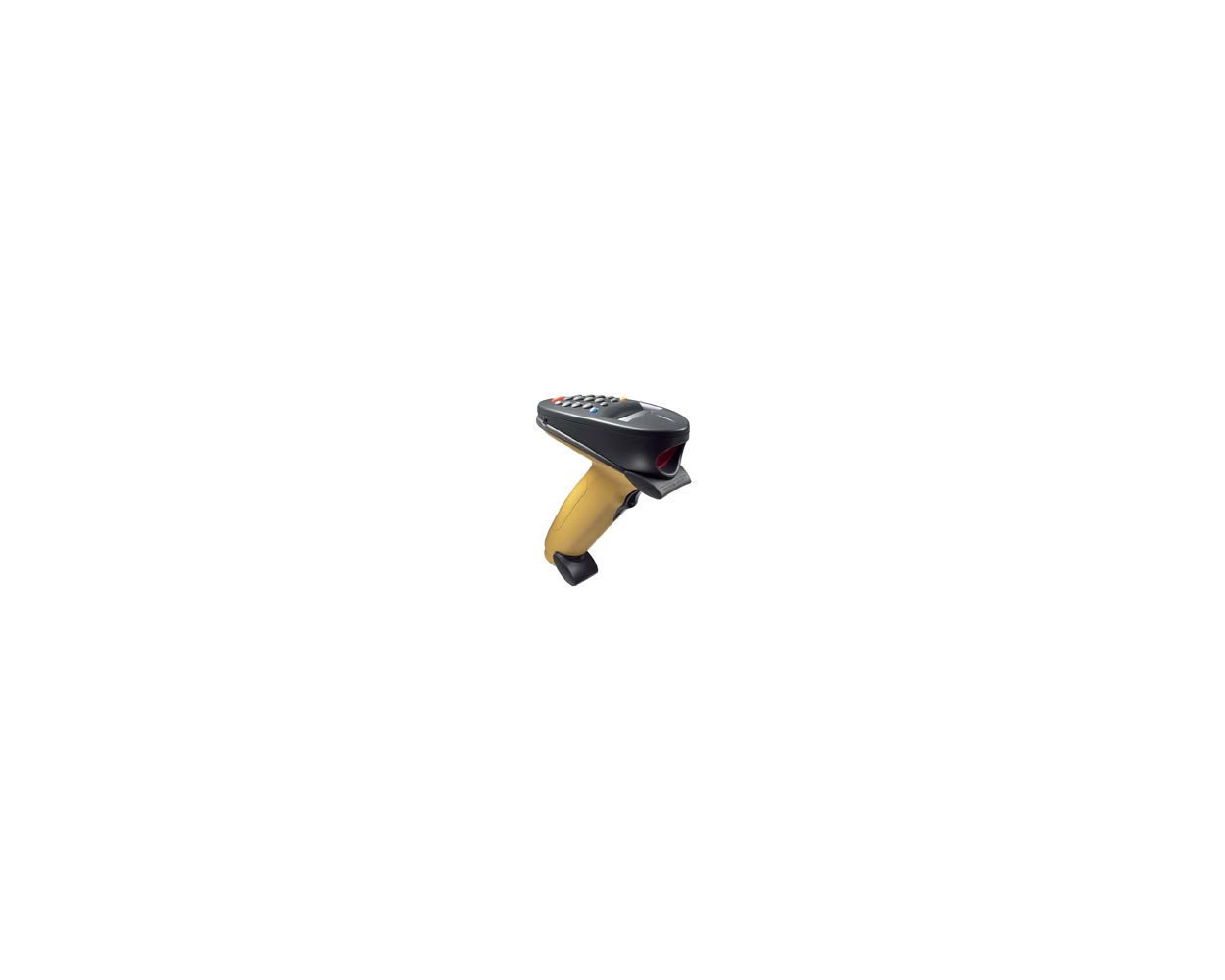

Atex Radio hand-held scanner BCS 370EX
Please note that this product is End-of-Life (EOL)
Replacement, ATEX ZONE 1 RADIO HAND-HELD SCANNER BCS 160
As innovative as it is rugged, the wireless atex radio hand-heldscanner BCS 370ex from BARTEC delivers the sophisticated ergonomic and operational features industrial applications demand.
The atex radio hand-held scanner BCS 370ex is able to easily read all conventional 1D-barcodes. Via the key pad, alphanumerical data can be entered and presented on the display.
The atex radio hand-held scanner BCS 370ex is equipped with a license-independent software, which offers the user the possibility of manually entering alphanumerical data, scanning all conventional 1D-barcodes and transferring them online via radio to the host system for evaluation and further processing. The atex BCS 370ex has a robust housing, an internal shock absorber and an ultrasonic welded window. This means that the BCS 370exis suitable for the hardest industrial conditions. With these measures the scanner can withstand a drop to concrete of 1.8 m.
Design
The BCS 370exradio atex hand-held scanner with integrated decoder has been designed for wireless real-time data acquisition and allows for a highly efficient operation in production halls, warehouses and other application sites. During data acquisition, the user is able to freely move within a distance of up to 30 m around the radio receiving station. The BCS 370ex radio hand-held scanner atex features the intrinsic safety type of protection and can be directly applied in hazardous areas of zone 1 or 2.
Base Station
The charging station (cradle) serves, at the same time, as radio receiving station and is installed in non-hazardous areas. By means of a RS232 cable, the base station can be connected to all conventional hosts.
Atex Radio hand-held scanner BCS 370EX Features
- immune to direct exposure from normal office and factory level lighting
- high level of impact resistance - robust
- all common barcodes readable
- 35 scans per second
- free movement during data acquisition, up to a distance of 30 m from the radio receiving station
Atex Radio hand-held scanner BCS 370EX Specifications
| mechanical | ||
| Protection class | IP 54 | |
| Dimensions | 173 x 150 x 74 mm (height x length x width) | |
| Weight | approx. 400 g | |
| electrical | ||
| Barcode options | all common barcodes | |
| Lamp | 650 nm laser diode | |
| Voltage |
1100 mAh lithium-ion battery BARTEC Type: 17-21BE-0008 |
|
| Power | Output power < 10 mW | |
| Transmission standard | max. 30 m side-by-side with existing Spectrum24 systems | |
| Frequency | 2.4 GHz point-to-point narrow band, 82 user-selectable channels | |
Downloads
Atex Radio hand-held scanner BCS 370EX.pdf
