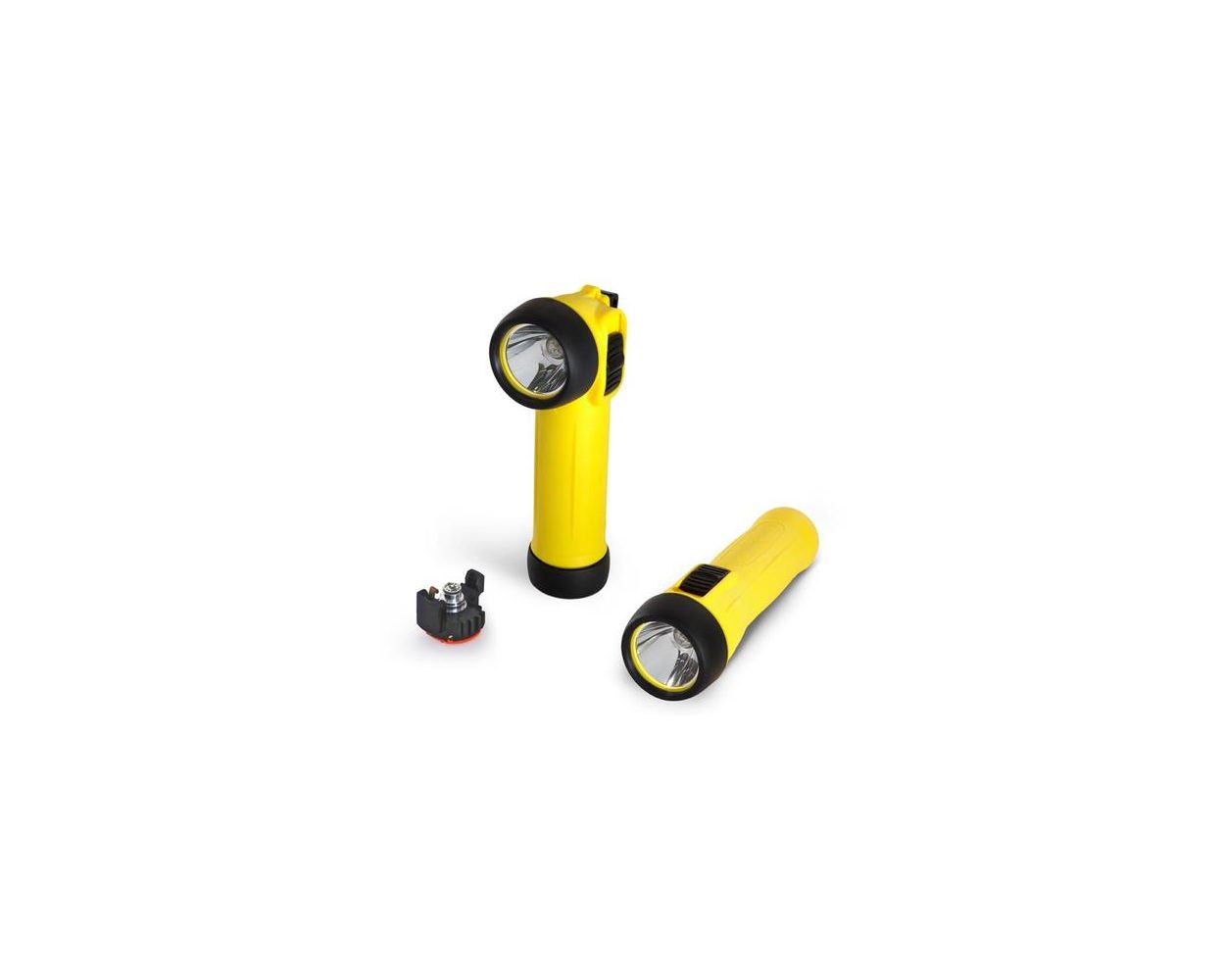

ATEX LED torch Wolf TR-30+ Zone 1 & 2 engled model T4
Call for Price
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
SKU
650207
SAP Item ID
651112
ATEX LED torch Wolf TR-30+ Zone 1 & 2 engled model T4
II 2 GD Ex e ib IIC T4 Gb (Ta=40/55?C) ? Ex tb IIIC T95?C Db (Ta=55?C)
| Product Reference | TR-30+ | TS-30+ | TR-35+ | TS-35+ | |
|---|---|---|---|---|---|
| Product Description | Primary Cell LED Right Angle or Straight Safety Torch | ||||
|
Right Angle |
Straight |
Right Angle Zone 0 & 20 |
Straight Zone 0 & 20 |
||
| Code (ATEX & IECEx) |
I M2/II 2GD Ex ib op is I Mb/IIC T4 Gb (–30°C ≤ Ta ≤ 40/55°C) Ex ib op is IIIB T130°C Db |
I M2/II 2GD Ex ib op is I Mb/IIC T4 Gb (-20°C ≤ Ta ≤ 40/55°C) |
I M1/II 1GD Ex ia op is I Ma/IIC T4 Ga (-30°C ≤ Ta ≤ 40/55°C) |
I M1/II 1GD Ex ia I Ma/IIC T4 Ga (-20°C ≤ Ta ≤ 40/55°C) Ex ia IIIB T130°C Da |
|
| Type of Protection | 'ib' intrinsic safety | 'ia' intrinsic safety | |||
| Area of Classification (Gas) | Zones 1 & 2 Gas Groups IIA, IIB IIC |
Zones 0, 1 & 2 Gas Groups IIA, IIB IIC |
|||
| Temperature Classification (Gas) | T4 | ||||
| Area of Classification (Dust) | Zones 21 and 22 Dust Groups IIIA and IIIB |
Zones 20, 21 & 22 Dust Groups IIIA and IIIB |
|||
| Max Surface Temp. (Dust) | T130°C | ||||
| Ambient Temperature | -30° to +40 / 55°C |
-20°C to +40 / 55°C |
-30° to +40 / 55°C | -20° to +40 / 55°C | |
| Maximum ambient temperature is for use only with certain specified cells, as per product instructions. |
|||||
| Certificate |
ATEX Baseefa 07ATEX0091X / IECEx BAS 06.0089X |
||||
| Enclosure | Impact Resistant Thermoplastic, Chemical Resistant, Static Dissipative |
||||
| Lens | Toughened Glass 4mm | ||||
| Beam Type | Medium Spot with Wide-Angle Flood of Fringe Light | ||||
| Light Source: | Part No. | TP-300 | |||
| Power | Torch LED Module | ||||
| Output | Up to 130 lm | ||||
| Life | 25,000hrs+ (Fitted for Life) | ||||
| Power Source: | Part No. | 2 x H-20 (2 x LR-20 Cell suitable for 55° Maximum Ambient Temperature) (Batteries not supplied with torch) |
|||
| Type | LR20 Primary Cells to IEC60086 | ||||
| Power | 2 x 1.5v | ||||
| Low Battery Indicator | Yes | ||||
| Light Duration | Up to 14 hours to low power indicator Up to 17 hours total |
||||
| Ingress Protection | IP67 | ||||
| Weight (inc. cells) | 0.500kg | 0.475kg | 0.500kg | 0.475kg | |
