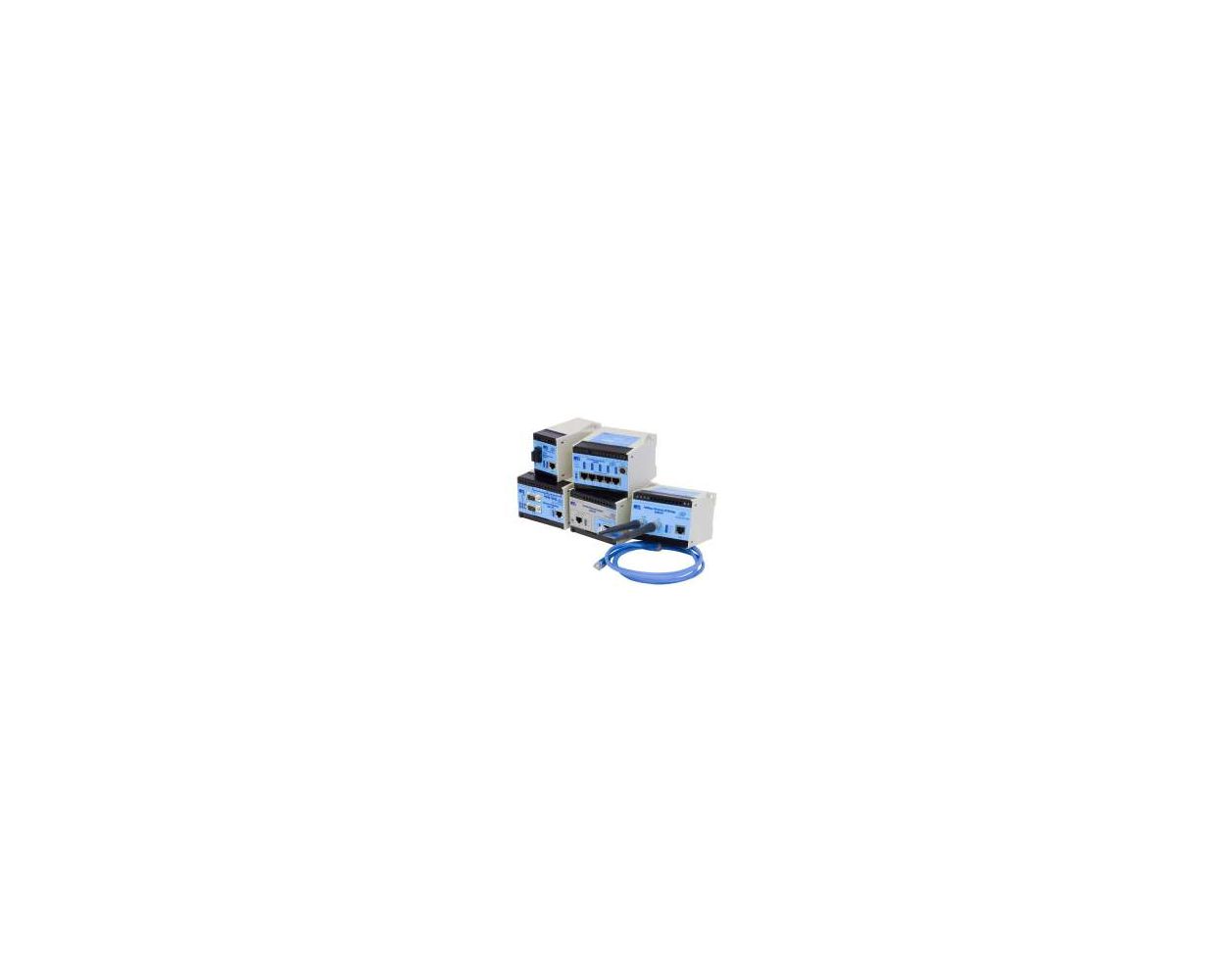

ATEX 9460-ET range - Ethernet Gateway
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
The 9400 product range provides cost-effective Intrinsically Safe (IS) Ethernet equipment that can be installed and maintained easily in hazardous areas. The intrinsically safe hazardous area certification permits the components to be mounted in a Zone 1 hazardous area with connectivity into Zone 0 and the associated apparatus certification of the 9468-ET IS Ethernet isolator and 9491-PS IS power supply allow this equipment to be mounted in a Zone 2 hazardous area and connected to intrinsically safe equipment in a Zone 0 or 1 hazardous area.
MTL660 range - Intrinsically Safe Indicator
The 9461-ET Ethernet Gateway gives existing intrinsically safe equipment “Ethernet connectivity” by allowing conventional serial communication port equipment to be connected to an Ethernet network.
Two 9-way D-type serial ports are provided which are RS232/TTL compatible. In addition, the module’s front panel screw terminals (T6 - T15) provide two RS485/RS422, 2- or 4- wire ports, giving a total of four serial ports. All ports can operate at speeds up to 115K2baud.
Various protocols are available (e.g.: Serial Modbus, Modbus/TCP, Ethernet IP etc) in addition to Serial Tunnelling.
The 9461-ET is designed for hazardous-area mounting inside a suitable enclosure with intrinsically safe Zone 1, ATEX and IECEx certification and Division 1 FM USA and Canada approvals. The ATEX and IECEx approvals cover both surface industry and mining applications.
The design is based on a high performance ARM9 155MHz 32-bit RISC Processor (ARM926EJ-S).
The gateway may be powered by an intrinsically safe power supply or by Power over IS Ethernet (PoEx) providing intrinsically safe power and Ethernet communications over a single Cat5e cable.
SPECIFICATION
Power input
PoEx or separately powered
Input voltage: 12V DC (10–15.4V)
Input current: 150mA
Input protection: Fuse + supply reversal diode
Ethernet
Intrinsically Safe 10/100 base T
Connector: RJ45
PoEx: Powered Device
Location of module: Zone 1, IIC T4 hazardous area or Class 1, Div 1, Groups A, B, C, D T4 hazardous location.
Location of field wiring: Zone 0, IIC T4 hazardous area or Class 1, Div 1, Groups A, B, C, D T4 hazardous location.
Ethernet protection: Intrinsically safe
Certification Code: See approvals
Safety description: See certificate
Mechanical
Mounting: DIN rail
Dimensions (mm): Lenght: 75 - Width: 100 - Height (off rail): 116
Weight: 1200 g
Environmental
Ambient temp: Operating/Storage –40°C to +70°C
Relative Humidity: 5 to 95% RH (non-condensing)
Ingress Protection: Select enclosure to suit application, see certificate for information
