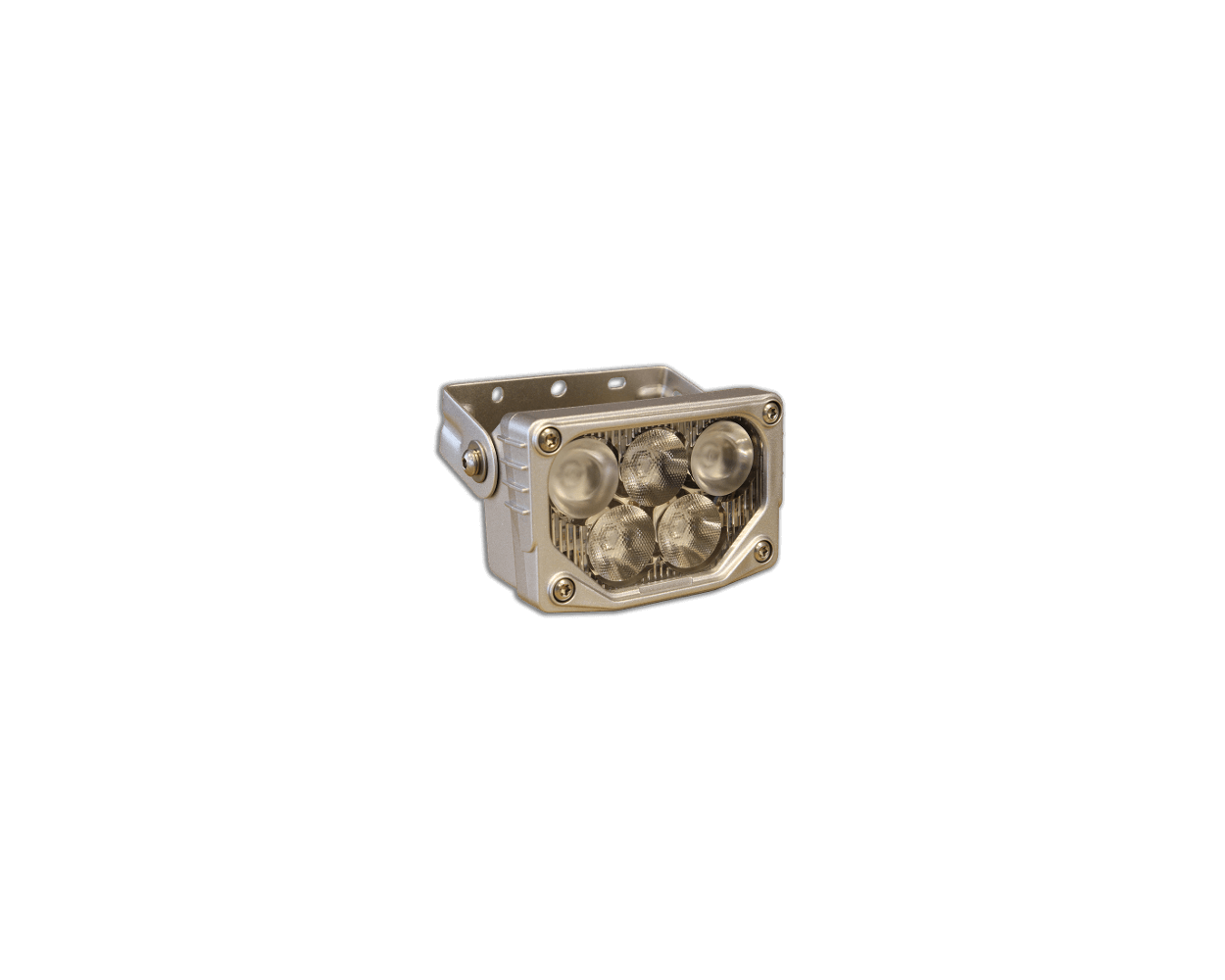

AR-040 SpotLED
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
DESCRIPTION
Artidor AR-040 SpotLED combines high performance and low energy consumption with the most modern LED technology and is therefore suitable for a wide range of applications. The SpotLED has a power of 12 Watt, comparable to 75 Watt halogen lighting.
The explosion-proof SpotLED is already being used with great success on construction sites, trucks and forklifts, machining machines such as lathes and milling machines and for lighting facades.
The SpotLED can be supplied with LED optics with an angle of 10 ° (spotlight), 38 ° (wide spotlight) or a combination (work lighting). The cable has a standard length of 5 meters. Thanks to the stainless steel bracket and the large rotation angle of 155 °, the SpotLED is ideally suited for mounting against walls or inclined surfaces.
The Artidor AR-040 SpotLED is explosion-proof and certified in accordance with European Directive 2014/34 / EU (ATEX 114) and is CE marked.
CHARACTERISTICS
- ATEX certified
- Suitable for use in gas and dust environments, zone 2 and 22
- Degree of protection IP67
- Coated silver-gray aluminum housing
- Stainless steel bracket in the color of the housing
- Light source: 5 PowerLEDs of 3 Watt each
- 780 Lumen
- Different LED optics available
- Can be rotated from -50 ° to + 105 °
TECHNICAL DATA
Explosion protection | II 3 G Ex ec IIC T4 Gc; II 3 D tc IIIC T135 ° C Dc |
European guidelines | 2014/34 / EU (ATEX 114) and 2014/30 / EU (EMC) |
Applied standards | EN 60079-0: 2018, EN 60079-7: 2015 / A1: 2018 and EN 60079-31: 2014 |
Supply voltage | 12 - 30 V DC |
Nominal current | 500 mA @ 24 V, 905 mA @ 12 V |
Light source | Cree PowerLEDs 3 Watt (5x), 780 Lumen |
Light beam | 10 ° - 38 ° (depending on the model) |
Light color | Neutral white (~ 6700 K) |
Angular deflection | -50 ° to + 105 ° |
Material | Die-cast aluminum housing and stainless steel bracket (RAL 7001, silver gray). Window made of impact resistant polycarbonate. |
Degree of protection | IP67 according to EN 60529 |
Connection | Cable, color-coded, 3 x 0.34 mm², length 5 meters |
Ambient temperature | -30 ° C to +50 ° C |
Dimensions | 120 x 62 x 87 mm |
Weight | 540 grams |
AR-040 EU Declaration of Conformity (EN)
