Aegex100M
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
Aegex Technologies is excited to announce our next generation of Aegex Tablets. The Aegex 100M is ready to bring the exceptionally reliable design our customers know, with a new hard-anodized aluminum casing, 8GB RAM, and a new ergonomic design to improve grip. The Aegex 100M also has dynamic new connectivity options. With an anticipated in-market date of Q4 2022, the Aegex 100M Tablet is ready to meet the challenges of the most hazardous areas of your operations.

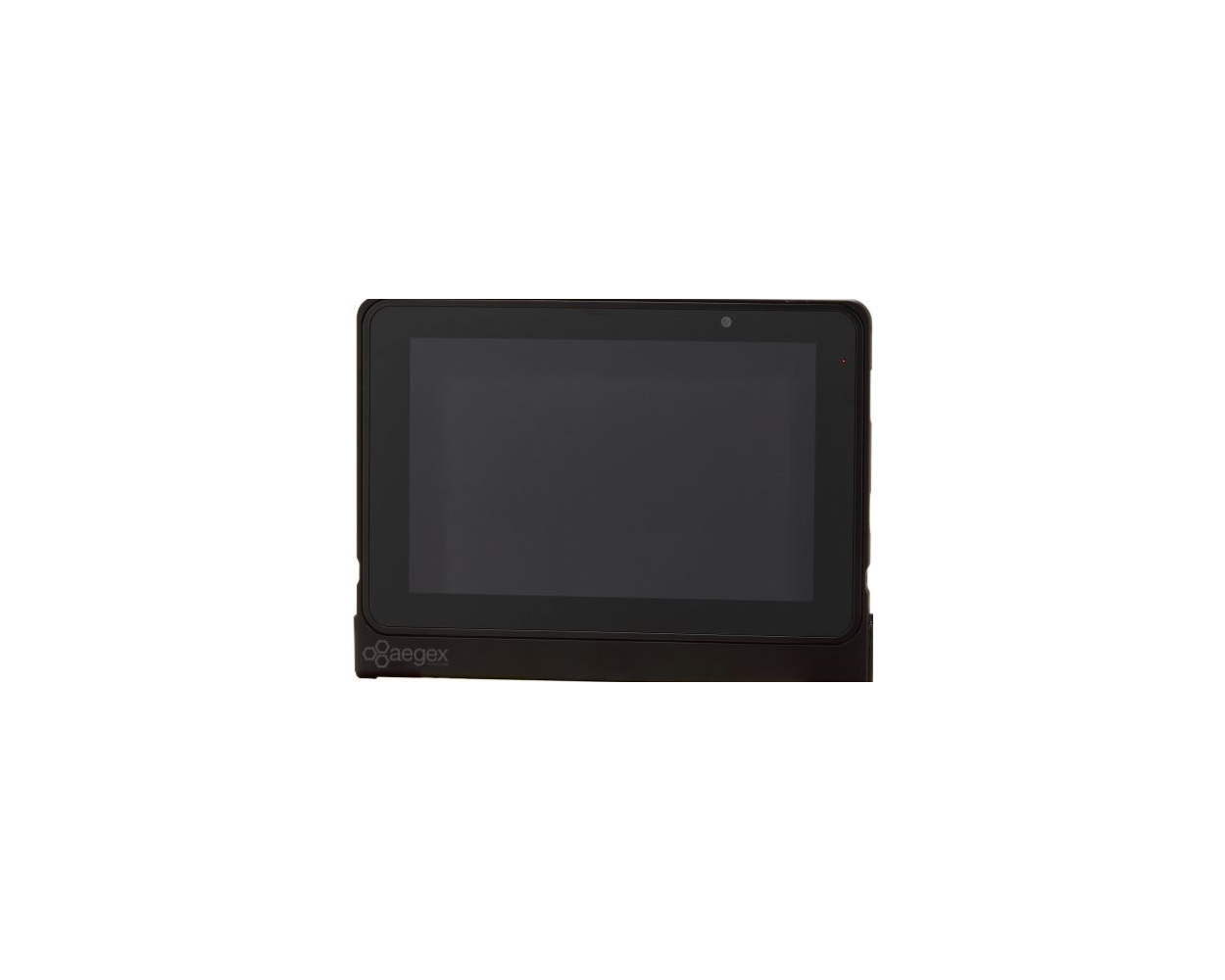

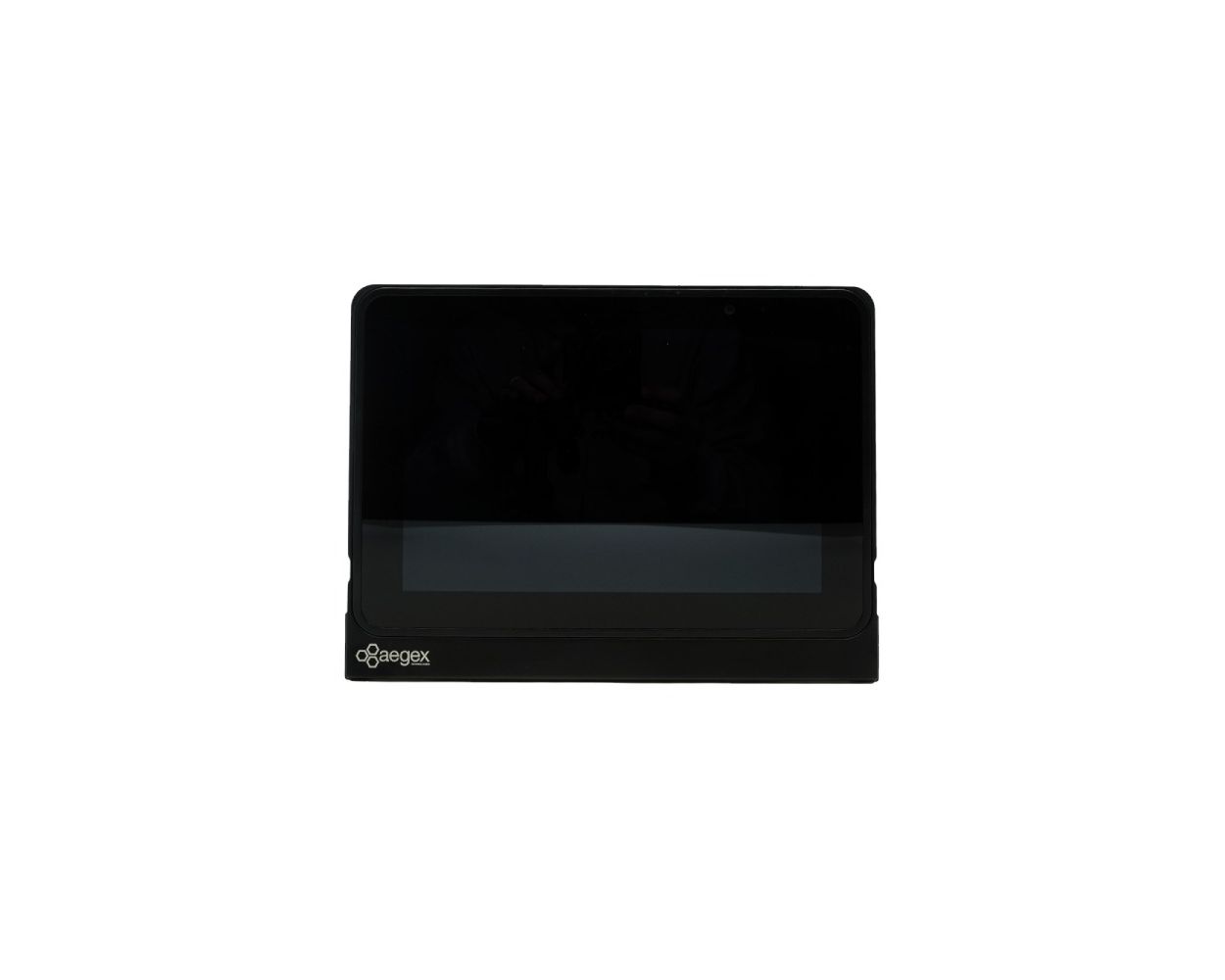

ATEX Mobile Sample Product AEGEX 100M
- Hard-anodized aluminum casing
- New connectivity options
- Powerful with 8GB RAM
- Ergonomic design to improve grip
- -10ºC to +50ºC operating temperature
- Capacitive Touch with gloves or pen
- 12-hour operating time
- Anti-theft security
- Hundreds of business apps
Full list of package contents
- Aegex 100M Intrinsically Safe Tablet (256GB) with Windows 10 IoT Enterprise License
- Wi-Fi only, Bluetooth, GPS version
- Power cord and universal adaptor
- Shoulder strap
- Passive stylus
Specifications
ntrinsically Safe Certifications
In certification for Zone 1/21 & Zone 0/20 certification according to
ATEX, IECEx, and UL 913 standards. Following are the planned certifications:
UL 913 8th Edition, CSA C22.2 No. 60079-0 & -11
Class I, II, III, Division 1, Groups A-G, T4
Tamb = -20°C…+50°C, IP67
IECEx
Ex ia IIC T4 Gb
Ex ia IIIC T135°C Db
Tamb = -20°C…+50°C, IP67
ATEX
II 2G Ex ia IIC T4 Gb
II 2D Ex ia IIIC T135°C Db
Tamb = -20°C…+50°C, IP67
Exterior
W x H x D: 278 x 207 x 13.8 mm (10.94 x 8.15 x 0.54 in) – without battery
W x H x D: 278 x 207 x 28.3 mm (10.94 x 8.15 x 1.11 in) – at battery section
Estimated final weight: 1400g (3.08 lbs)
Display
Screen 10.1” AHVA Full HD Plus
Resolution WQXGA – 2560 x 1600
Contrast 1000:1 (min 800:1)
Brightness 540 NITS, 16.7M Colours
Viewing angle (up/down, left/right) 170°
Battery Life
7.4V, 6500mAh, 48.1Wh
Rechargeable Lithium Cobalt Oxide
Charging Time (in standby)
Wall adaptor: 0-90% in 2.5hours, to 100% in approx. 3.5 hours
Docking station: 0-90% in 2.5hours, to 100% in approx. 3.5 hours
Storage/RAM/CPU
Intel® Quad-Core Apollo Lake processor
Base: 1.6GHz, Burst 1.8GHz
8GB RAM, 256GB storage
MicroSDXC Card Slot (up to 2 TB cards supported)
Wireless Comms
WiFi 802.11 a/b/g/n/ac/r/k/v/w/hc/ax
Bluetooth 5.2 + HS
LTE: Supported Bands TBD (optional)
NFC
AegexScan Barcode Reader (optional)
Location
GPS / GLONASS / Galileo
(Cold start <30s, Hot start < 2s)
Connections
Magnetic pin connector for rapid charging with Aegex Wall Charger
Docking connector supports LAN, USB 2.0, 3.0, USB-C, HDMI,
SD Card, and audio jack
Software
Windows 10 IoT Enterprise
AegexScan Application – Optional
Cameras, Video & Audio
Main Camera (rear-facing): 8MP Auto-focus with flash
Image: 3264 x 2448 px jpg, video: 1080p (Full HD 1920 x 1080) 30 fps
Secondary Camera (Front-facing)
Image: 1920 x 1080 px jpg, video: 1080p (FullHD 1920×1080) 30 fps
2 digital microphones (Front/Back), front facing microphone array.
Stereo speakers
Sensors
Ambient light sensor (ALS), Accelerometer, Gyroscope,
E-Compass, SAR proximity sensor
Security
Intel® TXE Boot Guard 2.0
FW TPM (Intel® PTT3)
Intel® Trusted Execution Engine Interface (Intel® TXEI) Driver
Intel AES New Instructions
BitLocker
