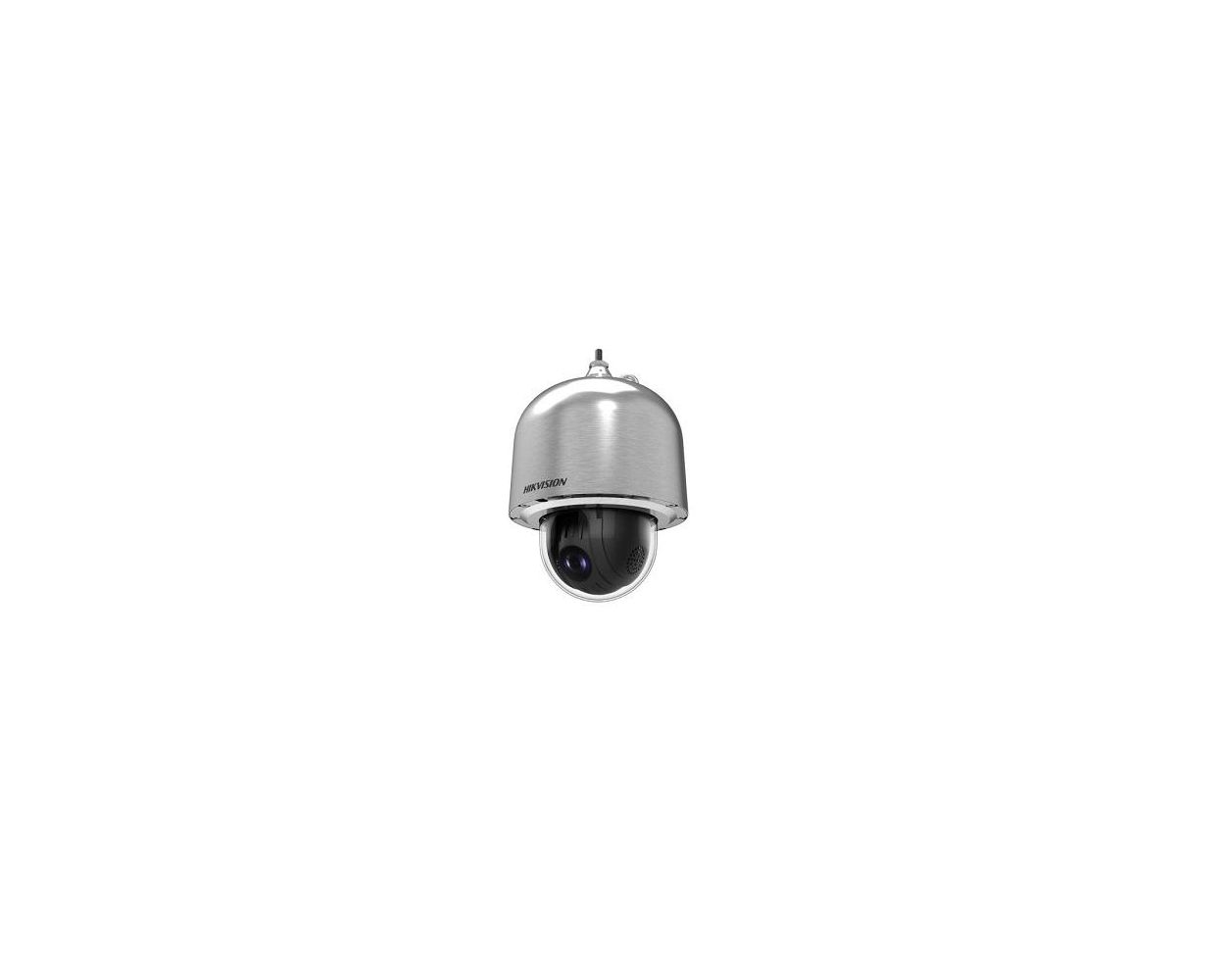

Hikvision Anticorrosion Dome camera

Call for Price
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
SKU
858725696
SAP Item ID
7000034

Zone 1 Hikvision Anticorrosion Dome camera • 1/1.9’’ progressive scan CMOS • Up to 1920 × 1080 resolution,23X Optical zoom • 120dB WDR, 3D DNR • IP68 • 304L stainless steel anti-corrosion materials design • Explosion-Proof Certificate No.:TÜ V 16 ATEX 7950X, IECEx TUR 16.0050X.

DS-2DF6223-CX (W)2MP Zone 1 Explosion-Proof Network Speed Dome



Camera
Image Sensor: | 1/1.9" HD CMOS sensor
Effective Pixels: | 1920(H)x1080(V)
Signal System: | PAL/NTSC
Minimum Illumination: | Color: 0.002 Lux @(F1.5, AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: | Auto/Manual
BLC: | ON/OFF
HLC: | Support
Smart defog: | Support
WDR: | 120dB
Shutter Time: | 1/1 s to 1/30,000 s
Day& Night: | ICR
Digital Zoom: | 16×
Privacy Masking: | 24 privacy masks programmable; optional multiple colors and mosaics
Auto Focus: | Auto / Semi-automatic / Manual
Lens
Focal Length: | 5.9 mm to 135.7 mm, 23× optical zoom
Zoom Speed: | Approx. 7.4 s (Optical Lens, Wide-Tele)
Angle of View: | 59.8° to 2.0° (Wide-Tele)
Minimum Working Distance: | 10 mm to 1500 mm (Wide-Tele)
Aperture Range: | F1.5 to F4.5
Pan & Tilt
Pan Range: | 360°endless
Pan Speed: | Configurable, from 0.1°/s to 300°/s
Preset Speed: 540°/s
Tilt Range: | Tilt: 0°~90°
Tilt Speed: | Configurable, from 0.1°/s to 240°/s
Preset Speed: 400°/s
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: | 300
Patrol: | 8 patrols, up to 32 presets for each patrol
Pattern: | 4 pattern scans, record time over 10 minutes for each scan
Power loss recovery: | Support
Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display: | ON/OFF
Freeze Frame: | Support
Smart-tracking: | Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger
Smart tracking when patrol between multiple scenarios
Alarm
Alarm Input: | 7 Inputs
Alarm Output: | 2
Alarm Actions: | Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Input & Output
Monitor Output: | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Audio Input: | 1 Mic in/Line in interface
Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output: | 1 Audio output interface
Line level, impedance: 600Ω
Network
Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: | 1920×1080
Main Stream: | 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720)
60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Sub Stream: | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream: | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
Image Compression: | H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile
ROI encoding: | Support 24 areas with adjustable levels
Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP,
TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
No. of Simultaneous Users: | Up to 20 users
Three-Stream: | Support
Mini SD Card: | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level: | Up to 32 users
3 levels: Administrator, Operator and User
Security Measures: | User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Client GUI
Date & Time Display: | Time: Week: Date, 6 formats on the Client
Client: | Support iVMS-4200
Web Browser: | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language
General
RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language: | English
Power Consumption: | 100 VAC to 240 VAC, Max.: 60 W
Working Temperature/Humidity: | -40° C to 60°C (-40° F to 140° F)
Dimensions: | Φ 281 mm × 405 mm (11.06" × 15.94")
Weight (approx.): | Approx. 22 kg (48.5 lb)
Mount Option: | DS-1685ZJ-X Wall Mounting Bracket (Included);
DS-1686ZJ-X Pendant Mounting Bracket (Optional)





Downloads

 Datasheet.pdf

 User manual of DS-2DF6223-CX (W).pdf

 ATEX Certificate.pdf

 IECEx Certificate.pdf
