Ex-Handy 10 featurephone | Atex Zone 1 & DIV 1 | IP68 | 4G | 2.6“

Be the first to review this product

Call for Price
^*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.

SKU

651272

SAP Item ID

651272

For users who need a more advanced mobile phone but not a Smartphone, the Ex-Handy 10 Feature Phone is designed to meet this need. The Ex-Handy 10 enables the use of a touch screen as well as a regular numeric keypad.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

This product is EOL (End Of Life)

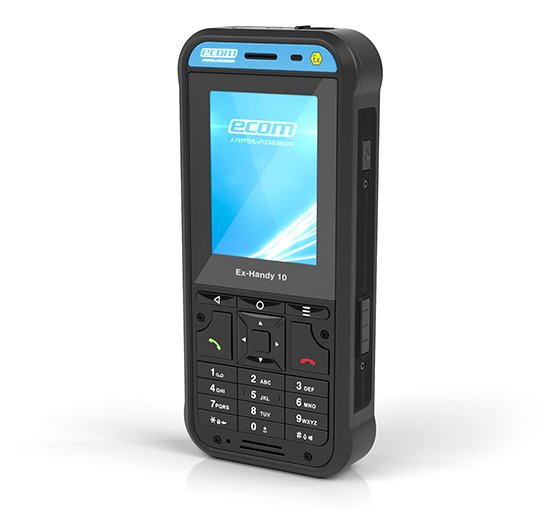

Intrinsically Safe 4G/LTE Ex-Handy 10 DZ1 for Zone 1 & DIV 1

Ex-Handy 10 - the new generation of intrinsically safe 4G/LTE feature phones for a broad variety of applications - from pure communication to Push-to-Talk or lone worker protection.

The Ex-Handy 10 with Android 8.1 operating system, is the ideal companion for innovative Industry 4.0 applications in hazardous areas. With IP68 and Gorilla® Glass you can operate the Ex-Handy 10 in the roughest of environments. With a 5-year product lifecycle and global Ex-certifications to meet all requirements, it provides a low risk investment to the user.

With customer-specific configurations and customizations, it also handles the most demanding of situations.

Features of the ExHandy10
* IP68 – dust- and waterproof housing + MIL-STD-810G standard
* Worldwide approvals for Zone 1/21, 2/22 & Class 1 / Div 1 & Div 2
* Protected in all situations: Special buttons for Push-To-Talk (PTT) & Lone Worker Protection (LWP)
* Always and everywhere applicable: Excellent readability of the display even in direct sunlight and a long battery life.

Technical Data of the Ex Handy 10:

OPERATING SYSTEM	Android™ 8.1
PROCESSOR	Qualcomm Snapdragon MSM8909 platform
MEMORY	2 GB RAM, 16 GB ROM SD card up to 128 GB
DISPLAY	2.6" capacitive multi-touch screen made of extreme shock and scratch resistant Gorilla glass Support of glove and wet mode High Visibility in direct sunlight
PORTS	3.5 mm jack connection with special ecom mounting solution 7-pins water-proof magnetic USB 2.0 connector
DIMENSIONS	148 x 67 x 24 mm
WEIGHT	approx. 330 g
OPERATING TEMPERATURE	-20 ... +60 °C
CONNECTIVITY	4G / LTE -standard (SIM unlocked and free); Nano SIM WiFi 802.11 a/b/g/n/ac/e/k/r/h; 2.4 Ghz and 5 Ghz support Bluetooth® 4.2 incl. BLE (Bluetooth Low Energy) GPS / A-GPS / Glonass / Beidou / Galileo NFC
CAMERA	8 MP rear camera with auto focus and LED flash with torchlight function (optional)
BATTERY	3920 mAh
PROTECTION	IP68 - Dust proof, water proof, MIL-STD-810G

Ex Certificates of the Ex-Handy 10
(Pending)

ATEX (Europe)
* II 2G Ex ia op is IIC T4 Ga IP64
* II 2D Ex ia op is IIIC T135°C Da

IECEx (International)
* Ex ia op is IIC T4 Ga IP64
* Ex ia op is IIIC T135°C Da

CSA (Northern America)
* Class I, II, III, DIV 1, Groups A-G, T4

Downloads

Handy10-Datasheet-comm-co.pdf
